Powerful and Versatile Workhorse for Diverse Needs

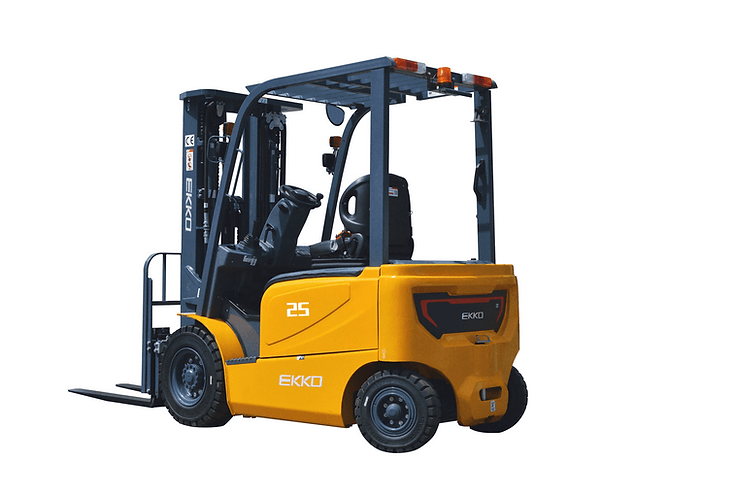

The EKKO EK25GHB is a robust 4-wheel electric forklift built to conquer a wide range of material handling tasks. It excels in applications like loading and unloading trucks, working on docks, and handling materials in stockrooms, manufacturing floors, and warehouses.
Durable Design for Indoor and Outdoor Use
The EKKO EK25GHB features a high-quality steel build and durable components, making it suitable for various indoor and outdoor applications. While it can handle some uneven terrain, consult the manufacturer for specific recommendations to ensure optimal performance.
Key Features for Enhanced Efficiency
- Heavy-Duty Lifting Capacity: Handles up to 5,000 lbs., ideal for substantial loads.
- Exceptional Reach: Stacks pallets up to 17.67 feet high with a 47.48-inch free lift for increased versatility.
- Precise Load Control: Ensures accurate maneuvering with side-shifting forks.

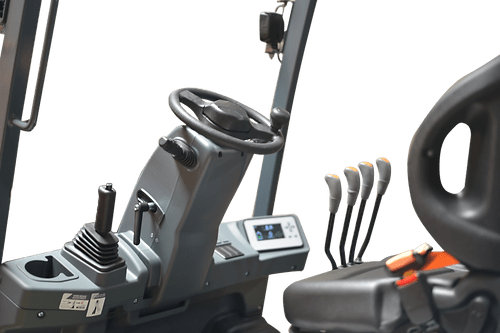

- Operator Comfort: Features ergonomic controls for comfortable operation during long shifts.
- Reliable Power: Powered by a ZAPI controller and a 48/600 AH lead-acid battery for long-lasting performance.
- Solid Performance: Equipped with solid pneumatic tires for added stability on various surfaces.
- Built to Last: Constructed with high-quality steel and robotic welding for a strong and reliable machine.
- Fast Charging Option: Compatible with a 3-phase 480V charger (optional 220V available for purchase) for quick recharging during busy operations.
- Peace of Mind: Backed by a 3-year limited warranty.
Specification
Model | EK25GHB | |
Lift | Electric | |
Drive | Electric | |
Load Capacity | (lb) | 5000 |
Load center distance | (in) | 24 |
Wheelbase | (in) | 65.35 |
Lifting height | (in) | 212 |
Free lifting height | (in) | 54.9 |
Lowered mast height | (in) | 94.5 |
Mast/Fork carriage tilt forward/backward | ( °) | 6/6 |
Side Shifting Forks | 3-way valve | |
Overall length | (in) | 138 |
Overall width | (in) | 46.45 |
Fork size, Thick/Width/Length | (in) | 1.57/4.72/42.12 |
Fork adjust width | (in) | 8.7-29 |
Turning radius | (in) | 84.2 |
Max.gradient performance, laden/unladen | (%) | 15/25 |
Driving Motor | (K/W) | 11 |
Lifting Motor | (K/W) | 12 |
Battery voltage | (V/Ah) | 48/600AH Lead acid |
Service Weight | (lb) | 10,114 |
