The EKKO ES40E-LI Scissor Lift is a highly compact and versatile solution for various indoor maintenance and construction tasks, particularly in confined areas. Here’s what we know about the ES40E-LI
Key Features:
- Load Capacity: 506 lbs
- Maximum Reach: 13 ft (157 in)
- Platform Size: 57″ x 30″ (length x width)
- Steel construction for durability
- 3-Year Limited Warranty

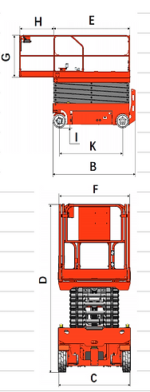

Specification

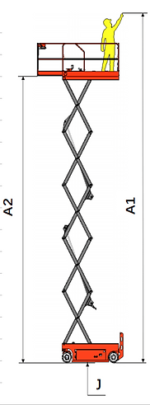

A1 Max working height | Inch | 19.7′ (236.2”) |
A2 Max platform height | Inch | 13′ (157”) |
B Length | Inch | 57.1 |
C Width | Inch | 29.9 |
D Overall height (guardrail not folded) | Inch | 76.8 |
Overall height (folding guardrail) | Inch | 63 |
Platform size (length EX width FX height G) | Inch | 50.4*29.1 |
G Guardrail height | Inch | 43.3 |
H Platform extension size | Inch | 23.6 |
I Ground clearance (closed state) | Inch | 2.36 |
J Ground clearance (lifting state) | Inch | 0.59 |
K Wheelbase | Inch | 40.6 |
product performance | ||
Maximum number of workers (indoor/outdoor) | 2 / ‚¬€œ | |
load rating | LBS | 500 |
Extended platform load rating | LBS | 220 |
Driving speed (folding state) | km/h | 0~4 |
Driving speed (lifting condition) | km/h | 0~0.8 |
Minimum Turning radius (inside) | Inch | 0 |
Minimum turning radius (outside) | Inch | 61 |
Rise/fall time | s | 25/25 |
Maximum allowable tilting Angle (front/left/right) | ° | 3°/1.5° |
Maximum allowable wind speed (indoor/outdoor) | m/s | 0/0 |
Maximum allowable lateral force (indoor/outdoor) | N | 400/0 |
Gradeability | % | 25 |
control | proportional control | |
actuator | Dual front wheels | |
braking | Double front wheels | |
Tyre specification/type | Inch | 9*3.1 |
Product power | ||
Lift/drive motor | kw | 1.2/0.4*2 |
Battery voltage/capacity | V/Ah | 25.6V/75AH |
Charger input voltage | VAC | 100-240 |
Charger output current | A | 10 |
control voltage | VDC | 24 |
Hydraulic tank capacity | L | 3 |
total weight | lbs | 2046 |
