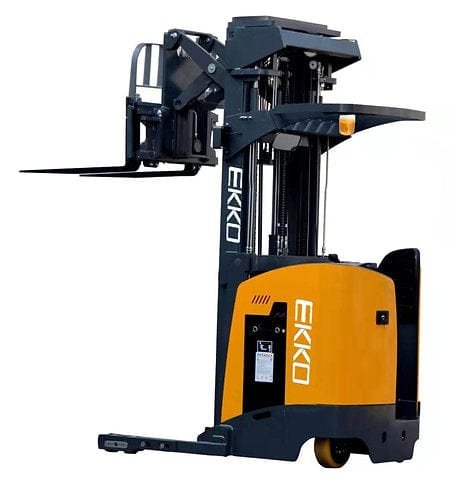

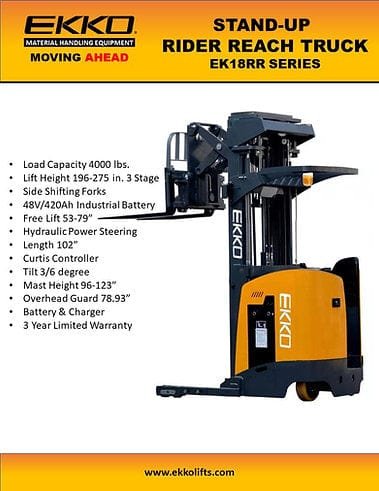

The High-Reaching Hero: EKKO EK18RR Stand-up Narrow Aisle Reach Truck
The EKKO EK18RR Stand-up Narrow Aisle Reach Truck is a multi-talented machine designed to conquer tight warehouse spaces and maximize storage potential. This innovative reach truck combines the functionality of a forklift, reach truck, and a walkie stacker, making it ideal for warehouses, stockrooms, and various industrial applications.
Unmatched Access and Storage Efficiency:
- Exceptional Lifting Height: Experience industry-leading lifting heights of up to 275 inches (almost 23ft), allowing effortless access to even the highest storage racks and eliminating the need for additional lifting equipment.
- Impressive Reach Distance: The reach capability of 22.44 inches extends your placement and retrieval range for unparalleled storage utilization in narrow aisles.
Enhanced Maneuverability and Operator Comfort:
- Narrow Aisle Design: The EK18RR is built for navigating tight spaces with ease, maximizing storage capacity in your warehouse.
- Stand-up Operator Platform: The comfortable operator platform allows for increased visibility and reduces fatigue during long shifts.
- Electronic Power Steering (EPS) & Curtis Instrument Controller: Experience smooth, precise handling and effortless control for efficient operation.
Advanced Features for Maximum Performance:
- High Load Capacity: Effortlessly handle and transport palletized materials weighing up to 4000 lbs.
- Side Shifting Forks, Free Lift, and Tilt: These features offer exceptional versatility and precise load handling for efficient stacking, positioning, and maneuvering.
- Adjustable Forks: Adapt to various pallet sizes with the adjustable forks ranging from 7.9 inches to 35 inches.
- German AC Drive Motor and 48V/420Ah Battery: Experience powerful performance and extended runtime for demanding tasks.
- Polyurethane Wheels: Ensure smooth travel, wear resistance, and suitability for most warehouse environments.
Additional Features:
- Durable Steel Construction with Robotic Welding: Delivers a long-lasting and reliable machine.
- Charger and Batteries Included: This reach truck comes ready to work right out of the box.
- 3-Year Limited Warranty: Provides peace of mind for your investment.

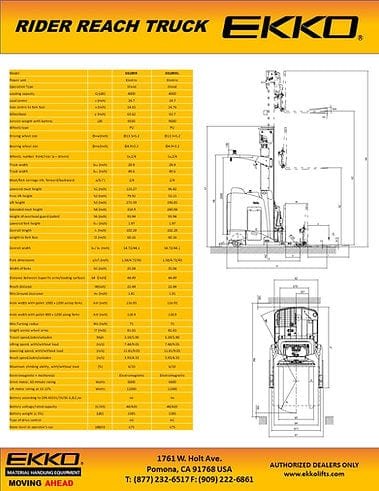

Specification
Model | EK18RR | |
Lift | Electric | |
Drive | Electric | |
Load Capacity | (lb) | 4000 |
Load center distance | (in) | 24 |
Lifting height | (in) | 275 |
Side Shifting Forks | 3 Way Valve | |
Free Lift | (in) | 79.92 |
Lowered mast height | (in) | 123.27 |
Overall length/Extended | (in) | 102.28 |
Overall width | (in) | 54.72 |
Fork size, Thick/Width/Length | (in) | 1.58/4.72/45 |
Fork adjust width | (in) | 35.04 |
Reach Distance | (in) | 22.44 |
Turning radius | (in) | 75 |
Charger | (V/A) | 48V/65A |
Driving Motor | (V/W) | 48V/6000 |
EPS Steering Motor | (V/W) | Yes |
Lifting Motor | (V/W) | 48V/11000 |
Battery voltage | (V/Ah) | 48V/420Ah |
Service Weight | (lb) | 9330 |
