iDEAL FP14KC-X 14,000 lb. 4 Post Service Lift 182.5″ WB (Closed Front / Cable Pull)

Original price was: $9,899.00.Current price is: $8,180.00.

-17%

You Save: $1,719.00

4 in stock

🚚 Fast Nationwide Shipping
Get your equipment delivered fast — anywhere in the continental U.S.

✅ Authorized Dealer Guarantee
Purchase with confidence from an official dealer with full warranty and factory support.

💵 30-Day Money-Back Promise
Risk-free purchase: if it’s not right for your shop, return it within 30 days.

🛠️  Peace of Mind Warranty
Every product is backed by  warranty for parts and structure.

🔁 Easy Returns, No Hassles
Stress-free return process if the product arrives damaged or doesn’t fit your needs.

💰 Price Match + No Sales Tax
Best price guaranteed. No sales tax in 49 states — only Wyoming residents excluded.

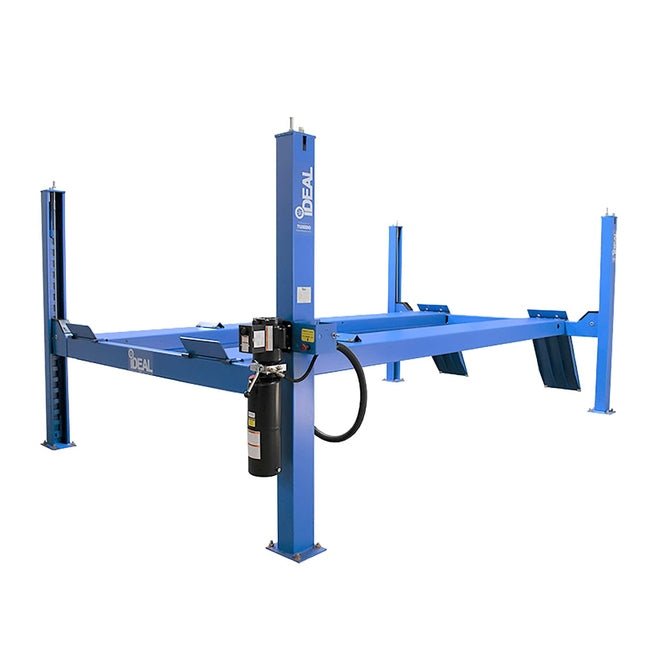

The iDEAL FP14KC-X 14,000 lb. 4 Post Commercial Lift

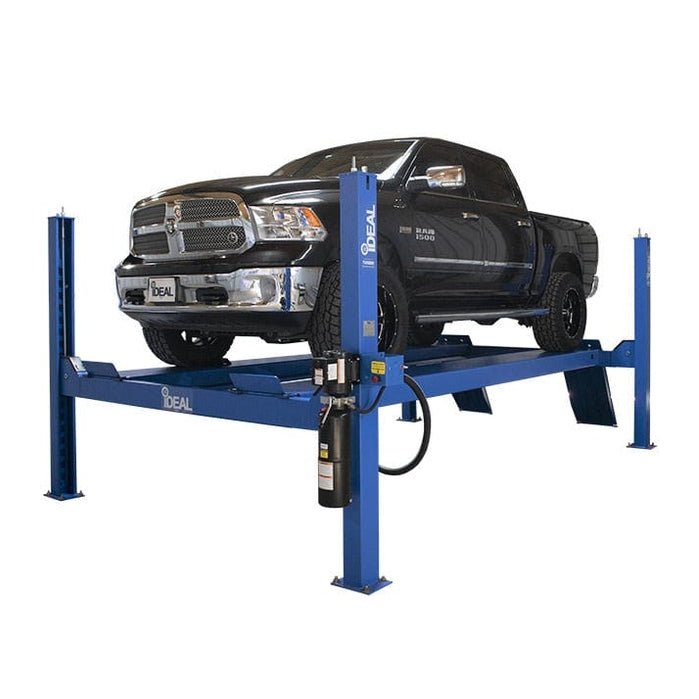

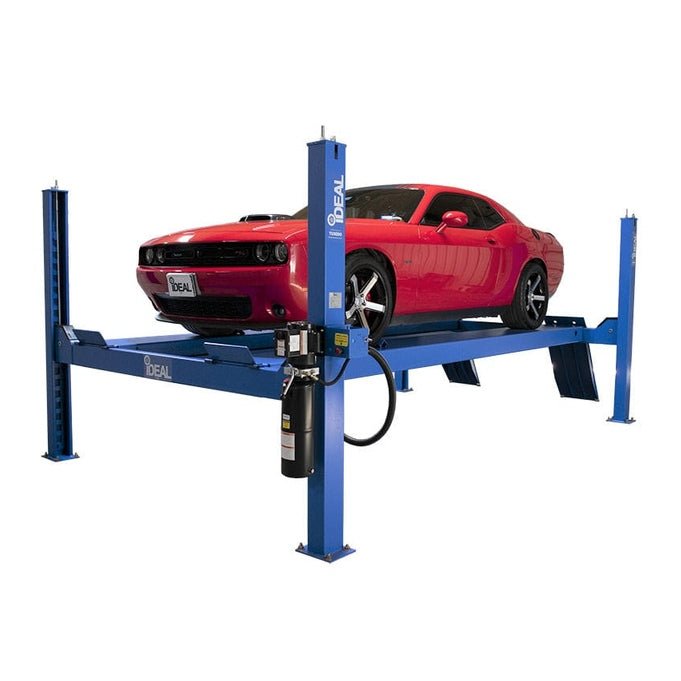

This lift is a high-performance closed-front, cable-pull vehicle lift designed for Cars, SUVs, Vans & Trucks.

The FP14KC-X Service Lift includes the latest in design & safety features including, narrow & wide runway mount positions, extended rise height for greater undercarriage vehicle access, concealed hydraulic/mechanical cable lift system with slack cable safety devices, and durable pulley & shaft design incorporating convenient grease fittings to the extended life of the lift.

Easy lift operation is provided with a single-point pneumatic lock release & high quality DURO power unit, while providing additional safety & protection with self-chocking ramps and included wheel stops. The iDEAL FP14KC-X modular design provides the flexibility to extend the runways for servicing longer vehicles, while also providing the ability to convert into a high-quality Alignment Lift quickly & easily!

The standard provided powder coat finish, 20 wide runways, adjustable lock stops for easy runway leveling, and optional power unit mount positions complete the package for a premium, high-quality service lift, all at an unmatched value!

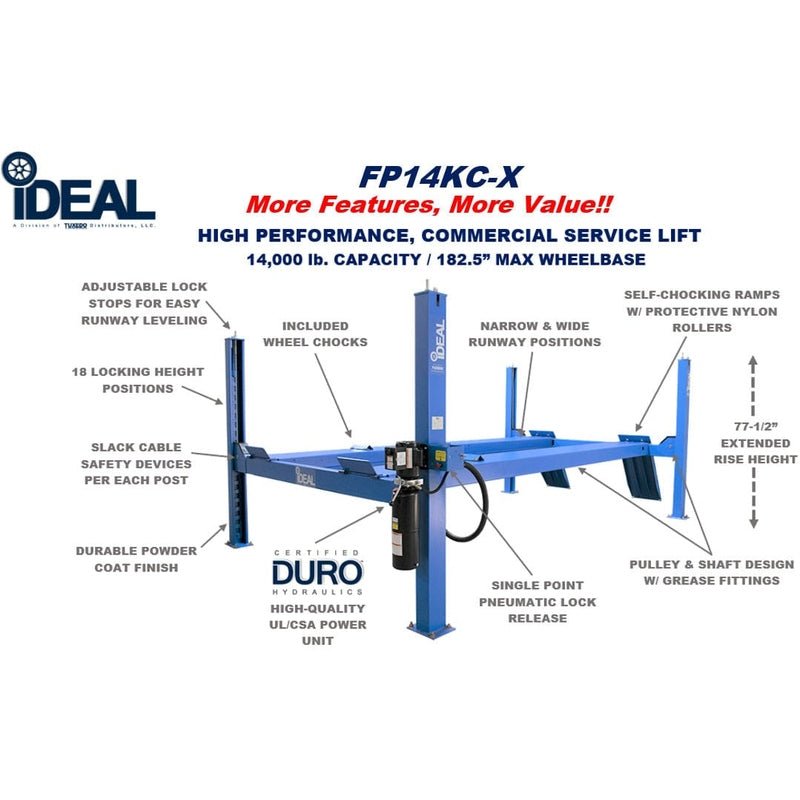

Features

  • 14,000 LBS CAPACITY
  • HIGH-PERFORMANCE COMMERCIAL SERVICE LIFT

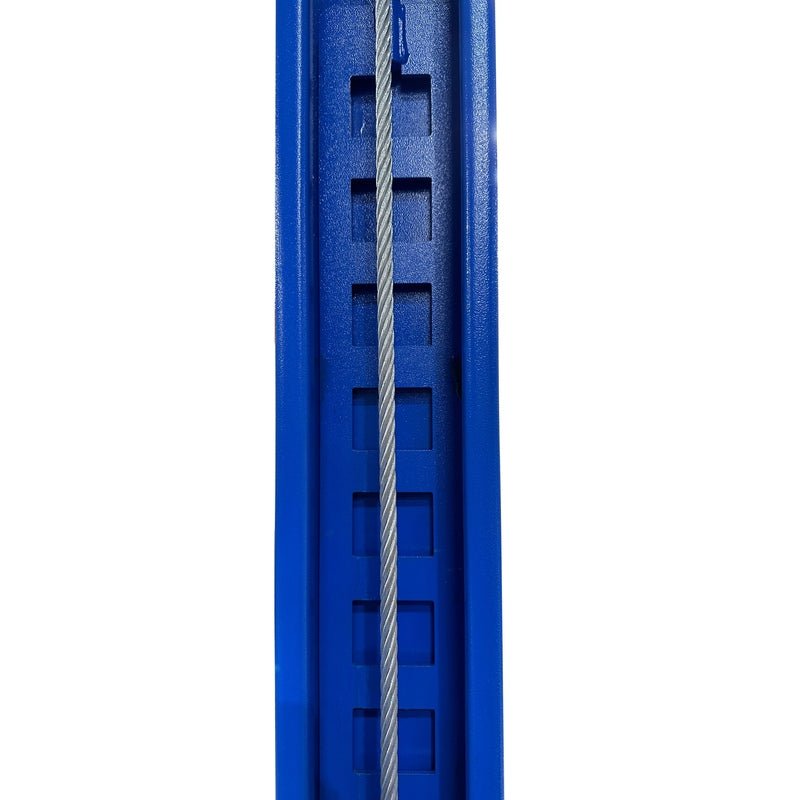

  • DURABLE, HIGH-QUALITY CABLE LIFT SYSTEM
  • 182.5″ MAX WHEELBASE
  • 18 LOCKING HEIGHT POSITIONS

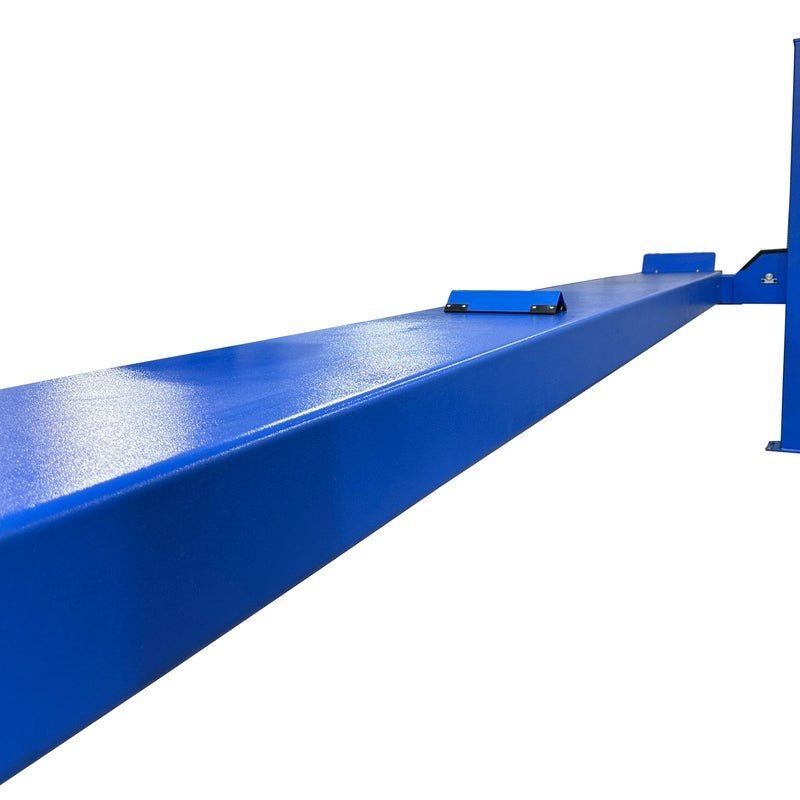

  • 20″ WIDE RUNWAYS
  • NARROW & WIDE RUNWAY MOUNTING POSITIONS
  • SINGLE POINT PNEUMATIC LOCK RELEASE
  • FULLY ADJUSTABLE LOCK STOPS FOR EASY LEVELING
  • SLACK CABLE SAFETY DEVICES

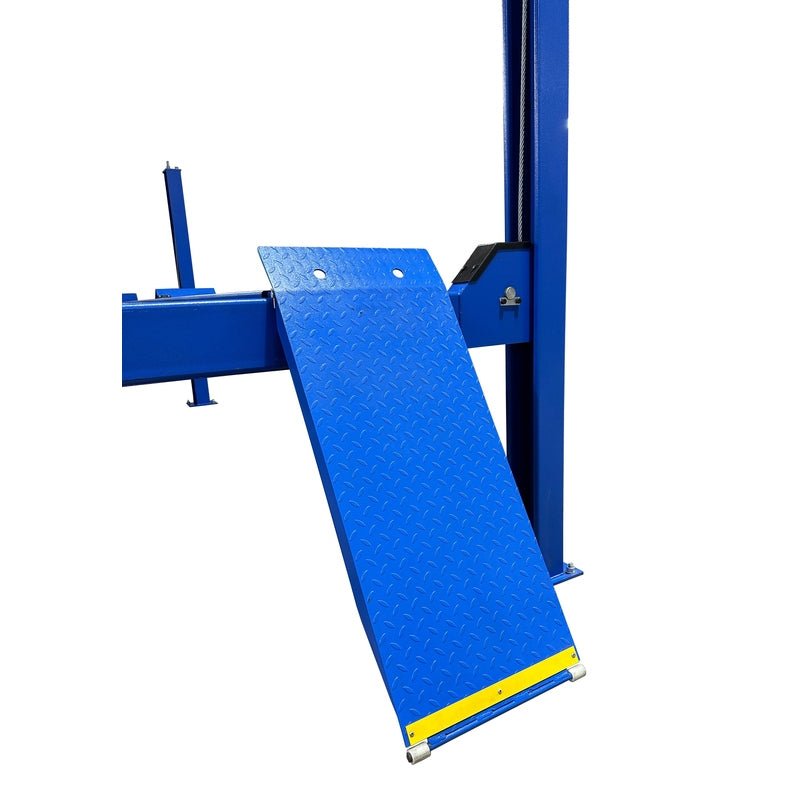

  • SELF-CHOCKING APPROACH RAMPS W/ NYLON ROLLERS

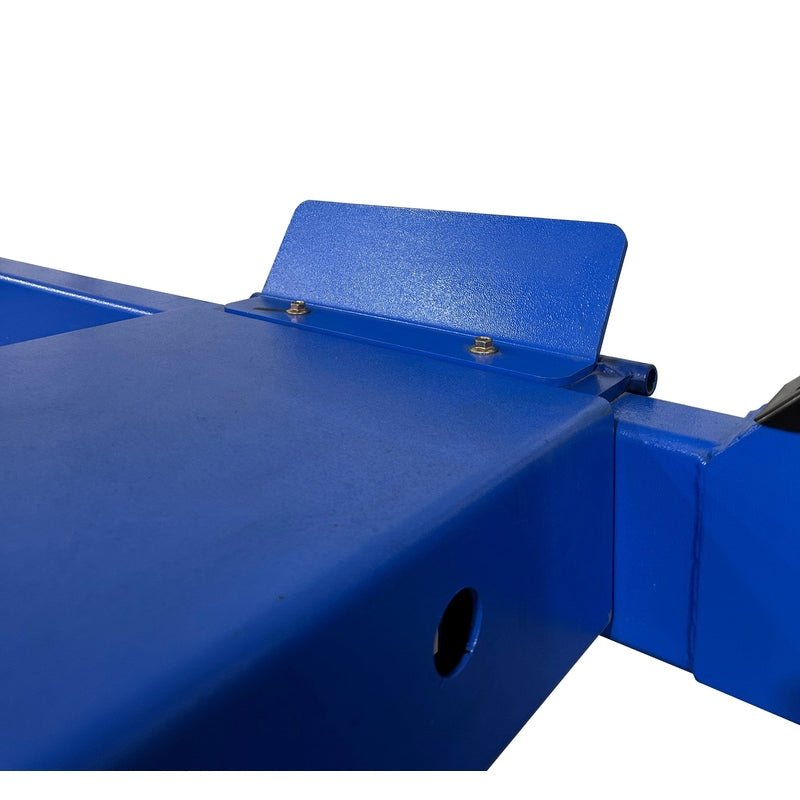

  • WHEEL CHOCKS (1PR)
  • DURABLE POWDER COAT FINISH

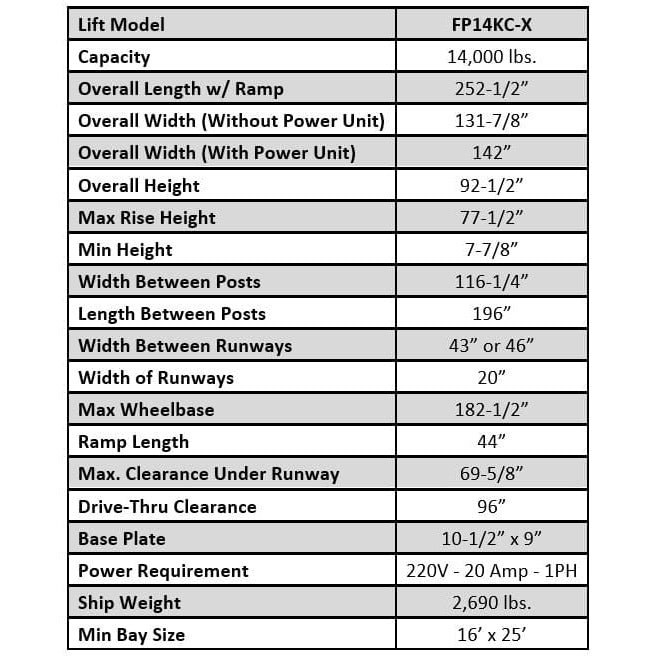

Specifications

Lift modelFP14KAC-X
Capacity14000 lbs
Overall length w/ Ramp252-1/2″
Overall width (without power unit)131-7/8″
Overall width (with power unit)142″
Overall height92-1/2″
Max rise height79-1/2″
Min height9-7/8″
Width between posts116-1/4″
Length between posts196″
Width between runways43″ or 46″
Width of runways20″
Max wheelbase182-1/2″
Max. align wheelbase (2 wheel)166-3/4″
Min / Max. Align wheelbase (4 wheel)103″ / 157″
Ramp length44″
Max. Clearance under runway69-5/8″
Drive-thru clearance100″

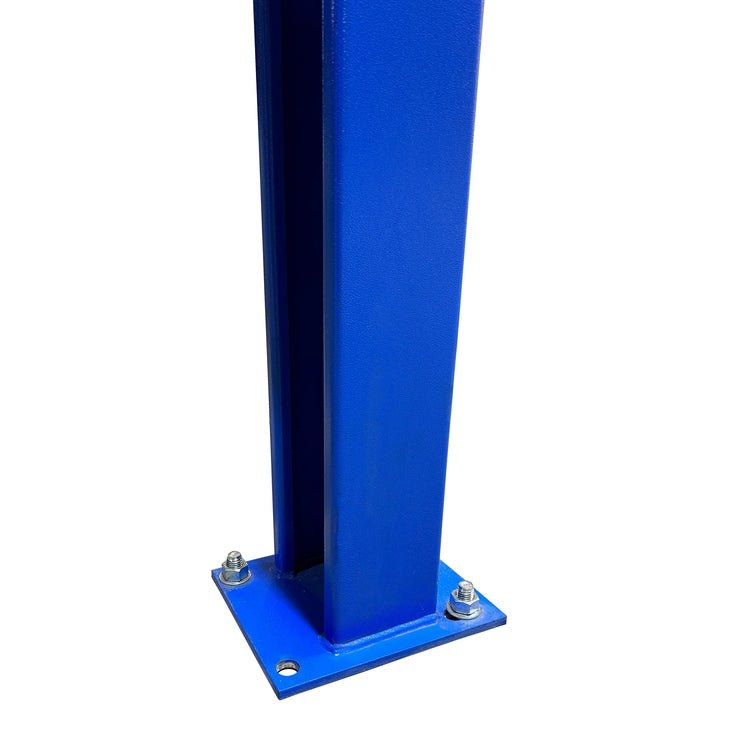

Base plate10-1/2″ x 9″
Power requirement220V – 20 Amp 1 PH
Ship weight3810 lbs
Min bay size16 x 25

Manual

The iDEAL FP14KC-X 14,000 lb. 4 Post Commercial Service Lift Manual
