Powerful and Versatile Workhorse for Diverse Needs

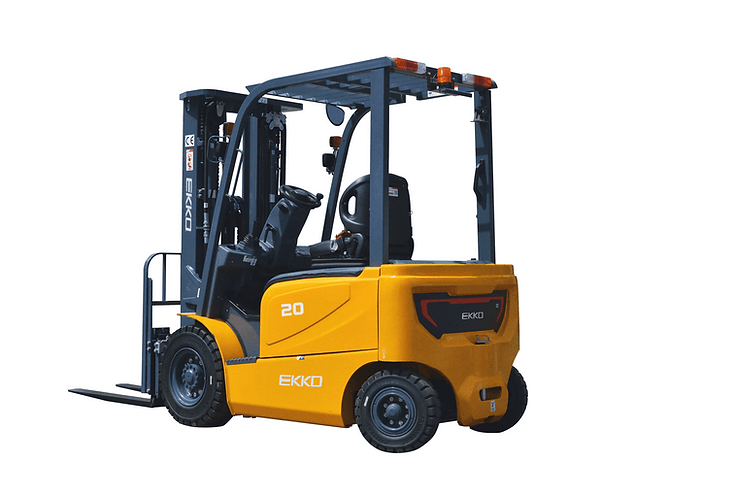

The EKKO EK18GS 4-wheel electric forklift tackles a wide range of material handling tasks with ease. It’s ideal for applications like loading and unloading trucks, working on docks, and handling materials in stockrooms, manufacturing floors, and warehouses.
Durable Design for Dependable Performance
The EK18GS boasts a high-quality steel build and durable components, making it suitable for various indoor and outdoor applications. While it can handle some uneven terrain, consult the manufacturer for specific recommendations.
Key Features for Efficient Operations
- Heavy-Duty Lifting: Lifts up to 4,000 lbs., making it ideal for substantial loads.
- Exceptional Reach: Stacks pallets up to 15.75 feet high with a 47.48-inch free lift for increased versatility.
- Precise Maneuvering: Ensures accurate load handling with side-shifting forks.

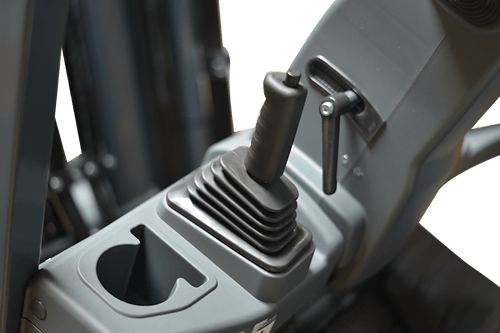

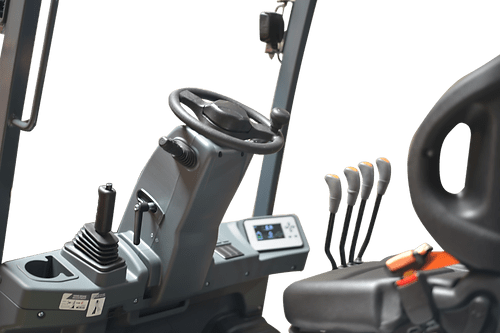

- Operator Comfort: Features ergonomic controls for comfortable operation.
- Reliable Power: Powered by a ZAPI controller and a 48/600 AH lead-acid battery for long-lasting performance.
- Solid Performance: Equipped with solid pneumatic tires for added stability on various surfaces.
- Built to Last: Constructed with high-quality steel and robotic welding for a strong and reliable machine.
- Fast Charging Option: Compatible with a 3-phase 480V charger (optional 220V available for purchase) for quick recharging.
- Peace of Mind: Backed by a 3-year limited warranty.
Specification
Model | EK18GS | |
Drive Type | Electric Forklift | |
Type of operation | Electric | |
Load Capacity | LBS | 4,000 |
Load Center distance | in | 20 |
Liftheight | in | 189 |
Wheelbase | in | 65.4 |
Tilt | DEG | 6/6 |
Tire material | Solid Pneumatic Tire | |
Driving Mode | Seated | |
Service Brake | Hydraulic Foot Pedal | |
Overall width | in | 46.45 |
Overall length with forks | in | 133 |
Overall lengthwithout forks | in | 96 |
Min outside turning radius | in | 85 |
Traveling speed (laden/unladen) | mph | 9/9.3 |
Ground clearance (at mast) | in | 3.95 |
Lowered Mast Height | in | 79 |
Free Lift | in | 47.48 |
Service Weight | LBS | 9,420 |
Side Shift | 3-way valve | |
Engine Mode | Zapi Controller |
