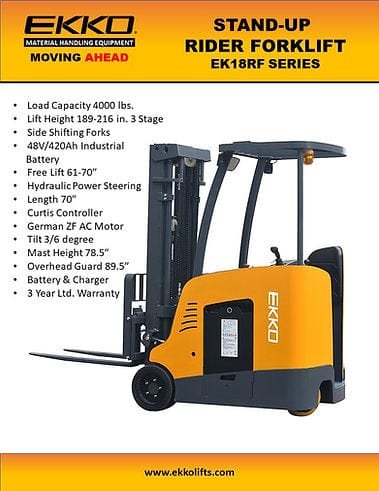

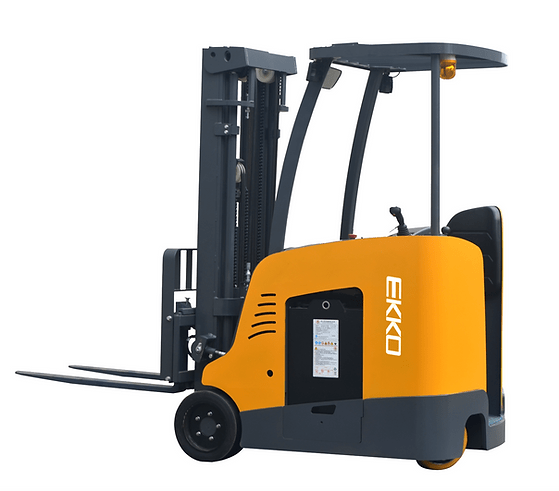

The Streamlined Powerhouse: EKKO EK18RFL Stand-up Rider Forklift
The EKKO EK18RFL Stand-up Rider Forklift offers a powerful and efficient solution for tackling material handling tasks in warehouses, stockrooms, loading docks, and manufacturing floors. This operator-centric forklift combines a comfortable riding platform with impressive performance, making it ideal for various industrial applications.
Enhanced Maneuverability and Operator Comfort:
- Stand-up Rider Design: The comfortable platform allows for increased visibility, reduces fatigue during extended shifts, and offers greater freedom of movement compared to a seated forklift.
- Hydraulic Steering & Curtis Instrument Controller: Experience smooth, precise handling and effortless control for efficient maneuvering, maximizing productivity.
Solid Performance for Mid-Level Warehouses:

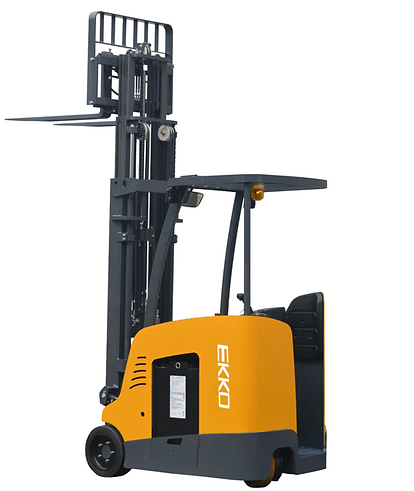

- 189-Inch (15.75ft) Lifting Height: Effortlessly reach and maneuver loads for medium-height storage applications.
- Solid Load Capacity: Handle and transport palletized materials weighing up to 4000 lbs with confidence.
- Side Shifting Forks: Enhance load handling versatility for efficient stacking, positioning, and maneuvering of pallets.
Additional Features for Enhanced Functionality:
- Adjustable Forks: Adapt to various pallet sizes with the adjustable forks ranging from 9.4 inches to 35.6 inches.
- German AC Drive Motor and 48V/420Ah Battery (included): Experience powerful performance and extended runtime for demanding tasks.
- Combination Tire Configuration: Solid cushion load tires provide stability and durability, while polyurethane drive tires offer a smooth ride and wear resistance.
- Ergonomic Handle and Controls: Prioritize operator comfort and ease of use.
- Durable Steel Construction with Robotic Welding: Delivers a long-lasting and reliable machine.
- Charger Included: This forklift comes ready to work right out of the box.
- 3-Year Limited Warranty: Provides peace of mind for your investment.
Specification
Model | EK18RFL | |
Power unit | Electric | |
Operation Type | Rider | |
Loading capacity | Q (LBS) | 4000 |
Load center | c (Inch) | 24 |
Axle centre to fork face | x (Inch) | 11.5 |
Wheelbase | y (Inch) | 48.8 |
Serviceweightwithbattery | LBS | 7870 |
Wheels type | Solid wheel | |
Driving wheel size | Φ×w(Inch) | 16×7-10.5（15.98*7.01*10.51） |
Bearing wheel size | Φ×w(Inch) | 13.5×5.2 |
Wheels, number front/rear | 1×/2 | |
Track width | b10 (Inch) | 35.04 |
Mast/fork carriage tilt, fwd/bwd | a/b (°) | 3/5 |
Lowered mast height | h1 (Inch) | 82.6 |
Free lift height | h2 (Inch) | 52.17 |
Lift height | h4 (Inch) | 188.98 |
Extended mast height | h4 (Inch) | 220.87 |
Height of overhead guard (cabin) | h6 (Inch) | 90.08 |
Height of seat/stand-on platform | h7 (Inch) | 9.06 |
Overall length | l1 (Inch) | 117.78 |
Length to fork face | l2 (Inch) | 72.52 |
Overall width | b1/ b2 (mm) | 42.52/42.13 |
Fork dimensions | s/e/l (Inch) | 1.58/4.72/45.28 |
Width of forks | b3 (Inch) | 36.22 |
Ground clearance under mast | m1 (Inch) | 2.95 |
Min. Ground clearance | m2 (Inch) | 3.86 |
Aisle Width Requirement | Ast (FT) | 10.5 |
Min. Turning radius | Wa (Inch) | 58.5 |
Travel speed,laden/unladen | (km/h) | 12/13 |
Lifting speed, with/without load | (mm/s) | 250/400 |
Lowering speed, with/without | (mm/s) | 240/258 |
Climbing ability, with/without | (%) | 6/10 |
Service brake | Hydraulic | |
Drive motor, 60-minute rating | (kW) | 6 |
Lift motor rating at S3 15% | (kW) | 7.7 |
Battery according to DIN 43531/35/36 A,B,C,no | no | |
Battery voltage/rated capacity | (V/Ah) | 48/420 |
Battery weight (± 5%) | (LBS) | 1570 |
Power consumption VDI | (mm) | 38*18.1*29.53 |
Type of drive control | AC | |
Noise level at the operator‚¬˜s ear | (dB(A)) | €°¤70 |
steering type | Hydraulic steering |
