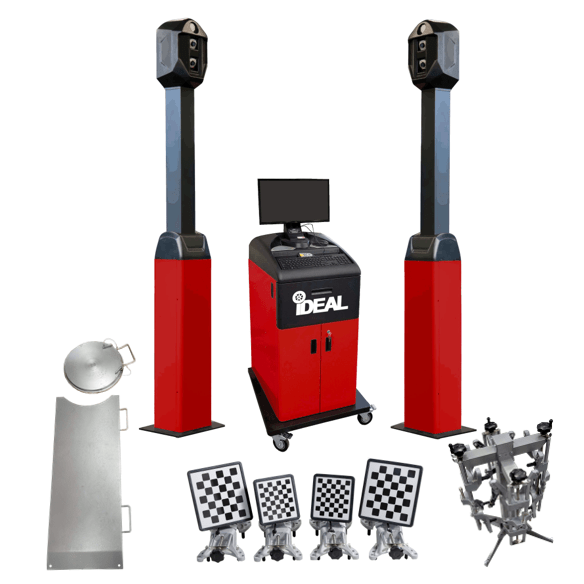

The iDEAL 3D HD Multi-Axle Imaging Wheel Aligner
This aligner (IWA-60-8500-HD-K) is one of the most economical & advanced heavy-duty 3D multi-axle imaging alignment systems on the market today. The iDEAL 3D HD Imaging Wheel Aligner provides multi-axle wheel alignments for trucks, semi-trailers, and buses quickly & accurately without the need for vehicle lifting!
Four high-definition industrial cameras enable readings on up to four axles simultaneously, plus the ability to align vehicles with even more axles. Wide Scope technology allows the system to read over an extensive range of lengths and wheelbases providing .01 degrees of accuracy, along with real-time measurements for improved productivity. Modern lightweight targets are quick & easy to mount on many styles of tire rims.

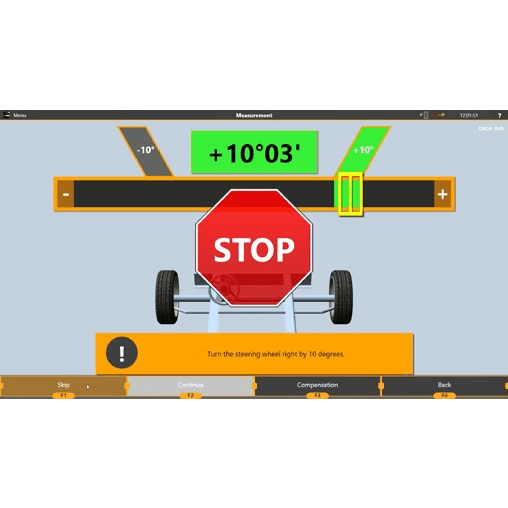

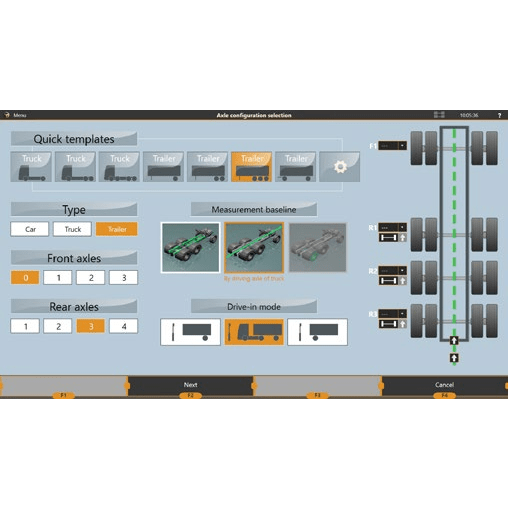

Alignment software also includes specialized data for trucks, with shim assistance, when setting rear axle thrust. User-friendly features provide precise & easy-to-understand instructions with high-quality LCD screen graphics, illustration diagrams & integrated help system, just to list a few. The iDEAL 3D HD Image Wheel Aligner is fully supported in the United States!
.embed-container { position: relative; padding-bottom: 56.25%; height: 0; overflow: hidden; max-width: 100%; } .embed-container iframe, .embed-container object, .embed-container embed { position: absolute; top: 0; left: 0; width: 100%; height: 100%; }
Features
- MULTI-AXLE FLOOR ALIGNMENT SYSTEM NO VEHICLE LIFT REQUIRED!
- DESIGNED TO MEASURE LONG VEHICLES & VEHICLES WITH TRAILERS
- HIGH RESOLUTION / EXTENDED RANGE 3D TOWER CAMERAS MEASURES UP TO FOUR AXLES AT ONCE
- INTEGRATED QUICK REFERENCE VEHICLE DATABASE FOR COMMERCIAL VEHICLES
- INCLUDES HD TURNTABLE & DRIVE-ON FLOOR RAMP SETS FOR QUICK & EASY FRONT END ALIGNMENTS
- DYNAMIC LED TOWER GUIDE CHANGES SHAPE TO GUIDE TECHNICIAN
- MOBILE CABINET ALLOWS FOR SIDE OR FRONT CENTERED PLACEMENT FOR DRIVE-THRU OR DEAD-END SET-UP CONFIGURATIONS
- DRIVE-OVER CABLE PLATES INCLUDED FOR DRIVE-THRU CONFIGURATION

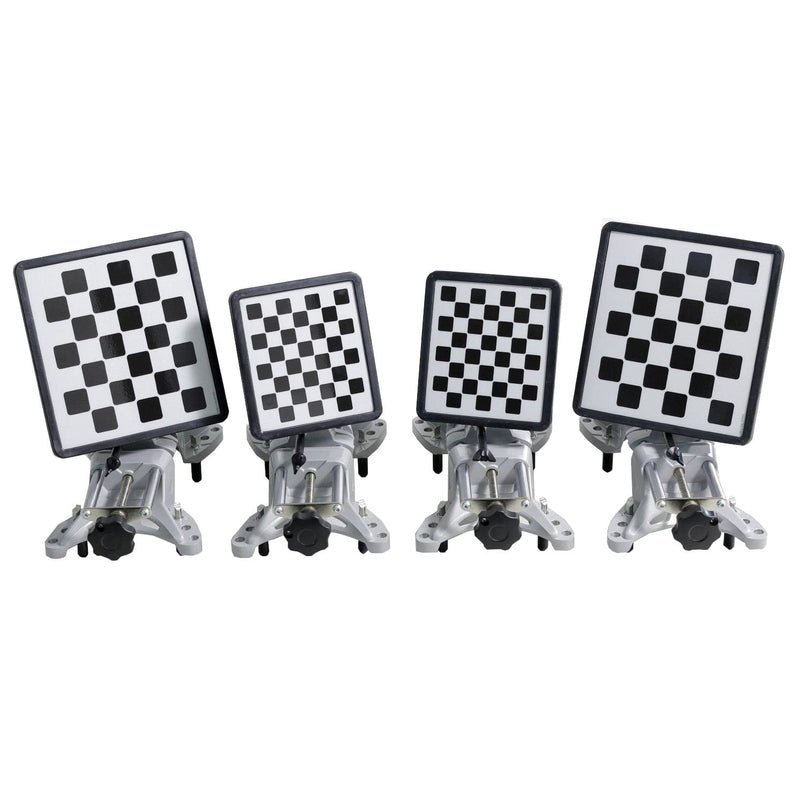

- 8EA COMPACT LIGHTWEIGHT TARGETS

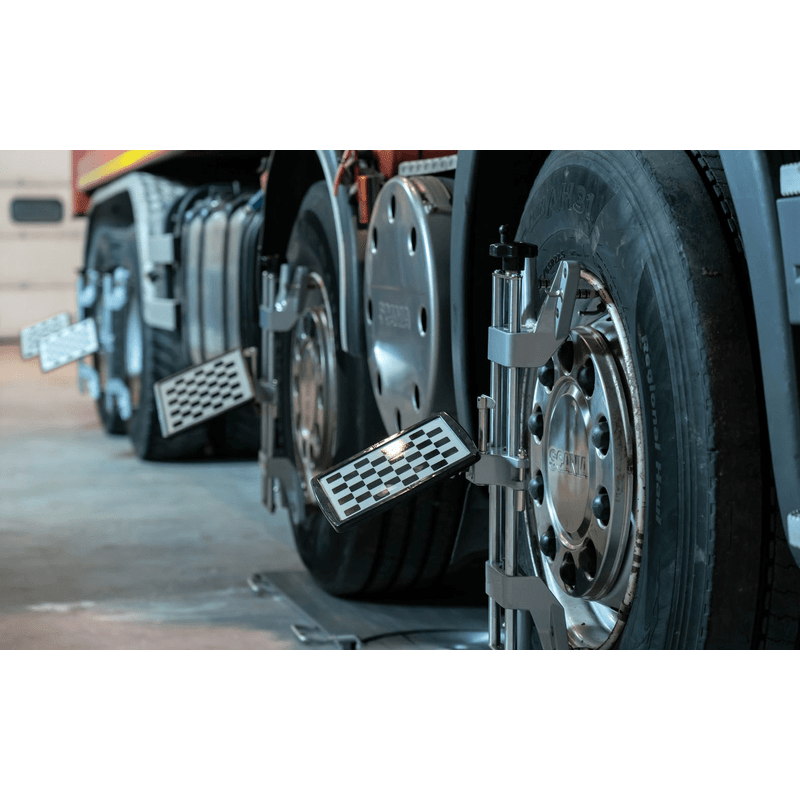

- 8EA ADJUSTABLE WHEEL CLAMPS 15- 27 FITS MOST STANDARD RIM SIZES
- CONVENIENT STORAGE STANDS FOR WHEEL CLAMPS

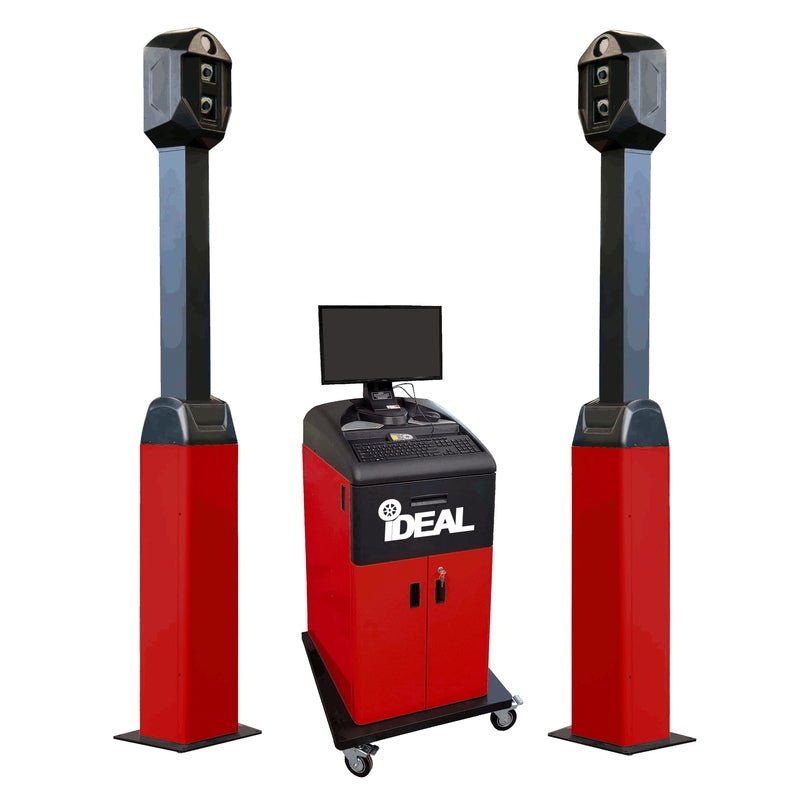

- DUAL TOWERS PROVIDE MAX VIEW RANGE UP TO 50 FT.
- WIRELESS REMOTE CONTROL OPERATION WHEN UNABLE TO REACH CABINET & KEYBOARD
- ILLUSTRATION DIAGRAMS & INTEGRATED HELP SYSTEM

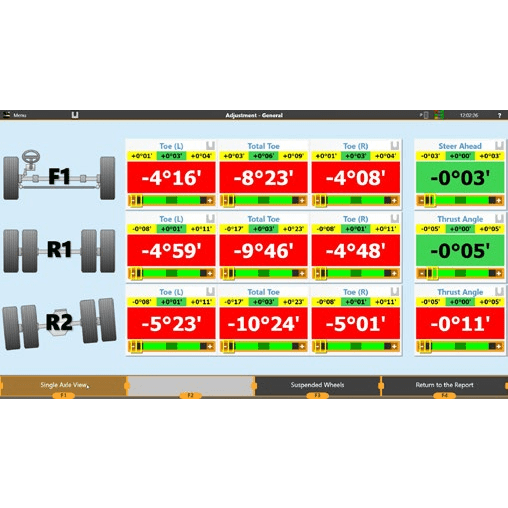

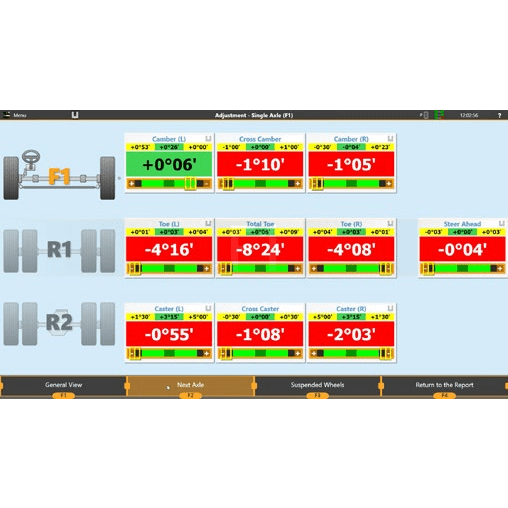

- LIVE READING SCREENS FOR FRONT & REAR AXLE READINGS
- RECALLS / PRINTS CURRENT & PAST INFO FOR CUSTOMIZED REPORTS
- OPTIONAL YEARLY VEHICLE SPEC UPDATES
- CONVENIENT CUSTOMER DATABASE FEATURE
- STEERING WHEEL HOLDER, BRAKE DEPRESSOR & WHEEL CHOCKS INCLUDED
- COMPUTER, MONITOR, KEYBOARD, MOUSE & COLOR PRINTER ALSO INCLUDED
Specifications
| Specifications | IWA-60-8500-HD-K |
| Aligner Type | Heavy Duty 3D Multi-Axle Imaging |
| Operator System | Windows |
| Software | Techno Vector 7 |
| Accuracy | 0.01 Degrees |
| Certification | CE |
| Target Size | (8) Standard |
| Cameras (Total) | 4 |
| Lift / 4 Post Hoist Compatible | No |
| Standard Wheel Clamps (8) | 15″ – 27″ |
| Toe Adjustment | Yes |
| Lifted Runout | Yes |
| Live Caster | Yes |
| Runout Compensation | Yes |
| Wheel Alignment Mode | Variable 2-8 Wheels |
| Database Update | Yes |
| Customer Manager | Yes |
| Max Track Width | Up to 13 feet |
| Max Wheelbase | Up to 50 feet |
| Power | 120V-15 Amp / 1PH / 60HZ |
| Ship Weight | 1,285 lbs. (3 pcs) |
Manual
iDEAL 3D HD Multi-Axle Imaging Wheel Alignment System Manual
