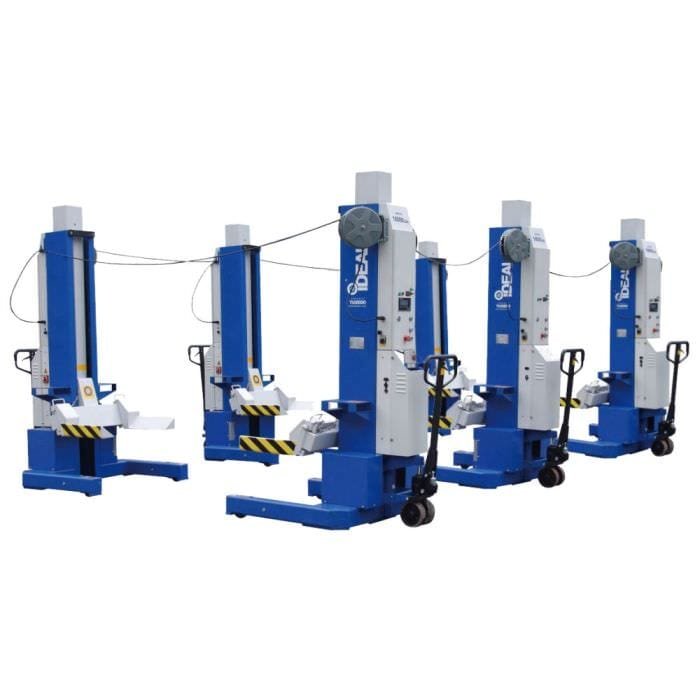

iDEAL MSC-18K-X-6108 ALI Certified Mobile Column Set
*Image is for reference
The iDEAL MSC-18K-X is ALI-certified and available in sets of two, four, and six columns to provide up to 108,000 lbs. of lifting capacity. The MSC-18K-X is designed for the heavy-duty user to lift fire trucks, school buses, and other large commercial vehicles by the wheels.
Optional accessories provide the flexibility to lift passenger vehicles and light trucks and wheels free lifting for expanded service. Technicians realize improved productivity through the safe, simple operation of the lift at each column using the well-designed control panel.
The mobile design and quick setup of the MSC-18K-X allow technicians to easily transform a flat bay into a lift bay for improved use of shop space. The small footprint of the MSC-18K-X allows for storage without impacting valuable shop space.
Features
- ALI certified
- 24VDC Battery Operation with Onboard Charging System
- Communication Cable with Retractable Cable Reels
- U-Shape Wiring Configuration for quick vehicle entry & exiting
- Convenient Operation from any Column
- Independent Mechanical Locking System
- PLC & Optical Encoder provides continuous synchronization for Columns
- Easily positioned with Pallet Jack type device with Poly Caster Wheels
- Adjustable Lifting Forks for the widest range of Wheel Diameters
- Emergency Switch per each Column, provides the highest safety assurance
- Easy to use Master Control Panel for Individual or Paired Synchronized Operation
- LCD Screen with Keypad offers easy to read visuals for Settings Lifting Height
- Conveniently stored out of the way when not in use to maximize work space
- Available in Two, Four or Six Column Configurations
- New! LED Light with Magnetic Base for each Column!!
- New! Optional MSC ALI Certified Accessories available!!
Specifications
| Lift Models | MSC-18K-X-236 | MSC-18K-X-472 | MSC-18K-X-6108 |
| Column Configurations | 2 Column | 4 Column | 6 Column |
| Capacity | 36000 lbs | 72000 lbs | 108,000 lbs |
| AC Power (Input, Per Column) | 100-140VAC, 60Hz, 1 PH | ||
| DC Power (Output, Per Column) | 24VDC | ||
| Lifting Height | 67.1″ | ||
| Column Heights Min/Max | Min. 88.6″ / Max. 155.5″ | ||
| Overall Width | 44.1″ | ||
| Fork Adjustable Range | 12.6″- 22″ | ||
| Fork Length | 17.9″ | ||
| Fork to Column Clearance | 10″ | ||
| Rise Time | 100S | ||
| Descent Time | 60S | ||
| Maximum Distance between Columns | 32′ 8″ | ||
| Minimum Concrete Surface Strength | 3000 PSI | ||
| Noise Level | 70 dB(A) | ||
| Set-Up / Operation | Indoors | ||
| Battery Type (Not included) | 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105) | ||
| Ship Weight | 1,584 lbs per Column | ||
