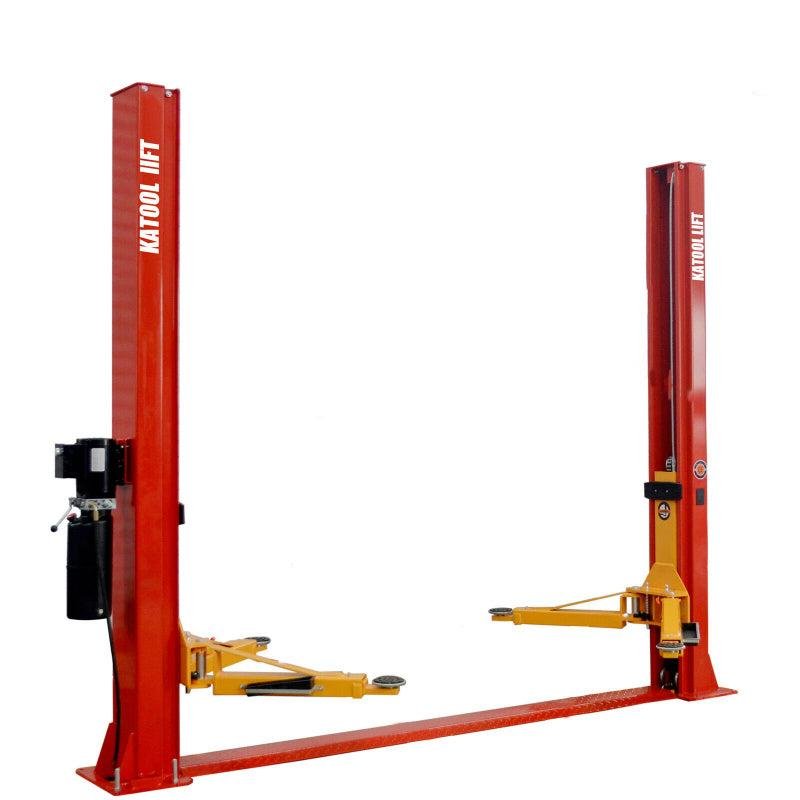

KT-H100 2 Post Lift by Katool
Tired of wrestling with heavy equipment and even heavier vehicles? With the KT-H100 2-Post Vehicle Lift, you won’t have to ever again. This is a hydraulic powerhouse engineered to conquer even the most demanding lifting challenges. This boasts a staggering 10,000-pound lifting capacity, making it the ideal solution for professional workshops and garages tackling trucks, vans, and the sort of machinery we used to drool over as boys. Because it lifts such heavy loads, the KT-H100 prioritizes safety. Features like a single-point lock release and overhead safety shutoff bar offer intuitive operation and prevent over-extension accidents. The rubber pad door opening protection means you won’t ding any doors.
The KT-H100’s asymmetric arms allow for flexible positioning of a wide range of vehicles, while the adjustable extended support adapters accommodate varying heights with ease. The 180-degree arm design provides even more flexibility, while integrated safety guardrails with a toolbox keep your workspace organized while keeping everything you need within easy reach. The direct drive cylinders ensure smooth, reliable lifting, while the high-quality hydraulic system operates on either 220V or 110V power sources for maximum convenience. If you want long-lasting, robust lifting, you can’t go wrong with the KT-H100.
2 Post Lift KT-H100 Specification:
- Lifting Capacity: 10,000 lbs
- Max. Lifting Height: 70.75 inches
- Min. Height: 4.25 inches
- Height Overall: 110 inches
- Width Overall: 142.5 inches
- Outside Columns: 128 inches
- Inside Columns: 110.25 inches
- Drive Thru Clearance: 94.5 inches
- Front Arm Reach (min): 30.75 inches
- Front Arm Reach (max): 50.5 inches
- Rear Arm Reach (min): 30.75 inches
- Rear Arm Reach (max): 50.5 inches
- Net Weight: 1323 lbs (600 kg)
- Oil: AW-46 or AW-32 (colder climates)
KT-H100 From Katool Special Features:
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
- Manual safety release from 2 sides
- Symmetric arms
- Dual Hydraulic Chain-Drive Cylinders
- Rubber pad door opening protection
- Comes with adjustable extended support adaptor sets that range from 3.94 inches to 6 inches.
- Cable Thickness: 3/8″
- Power: 220V/60HZ/1PH
- Katool Warranty:
- One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
- Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.
Katool KT-H100 Documentation:
*Must be wired to a circuit with 10-gage wire and a 30-amp breaker
*Concrete thickness must be at least 5.9″ with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
