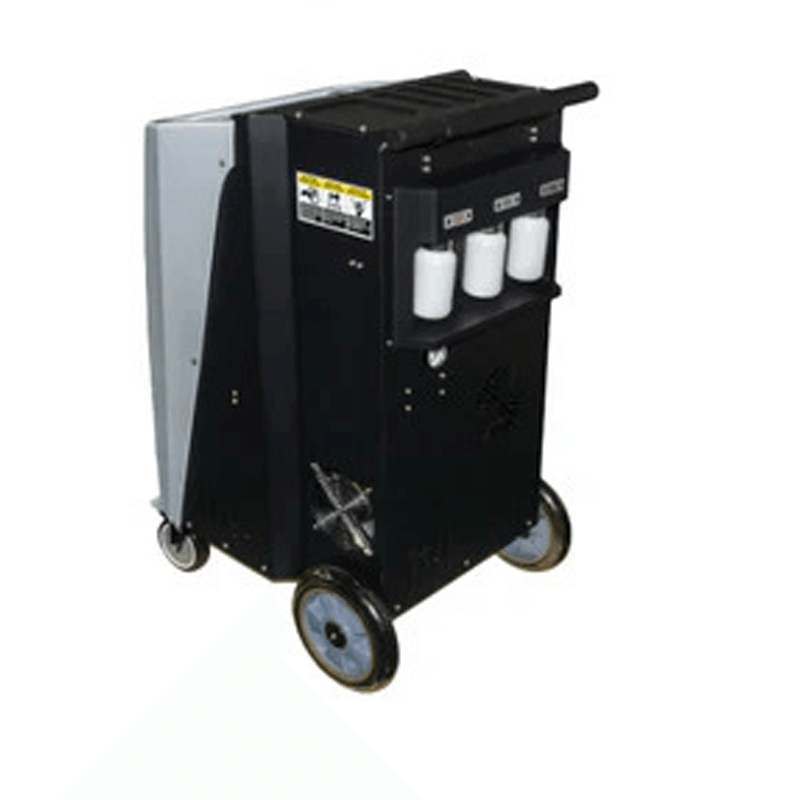

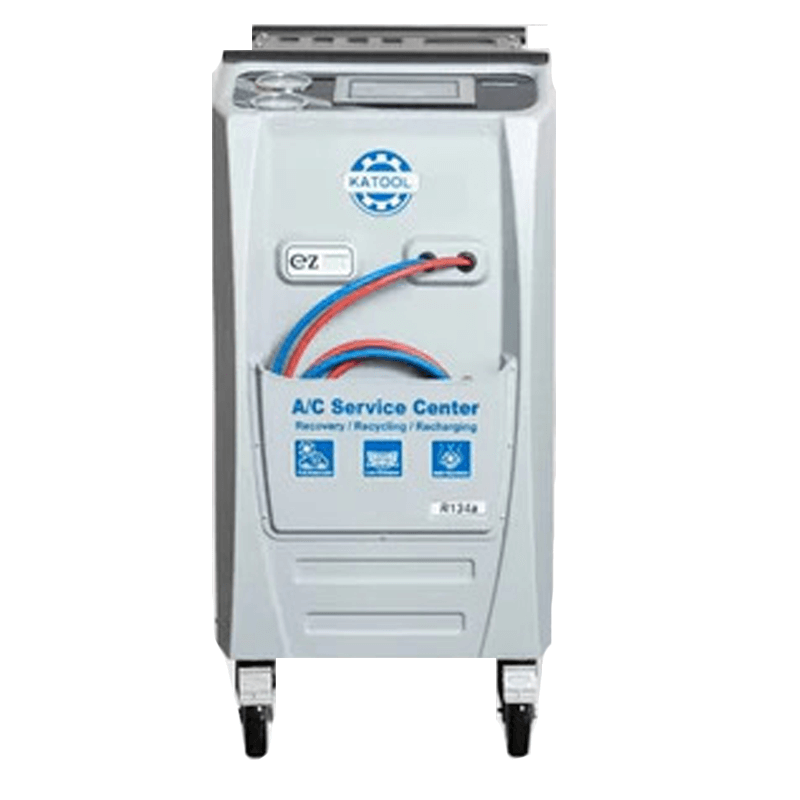

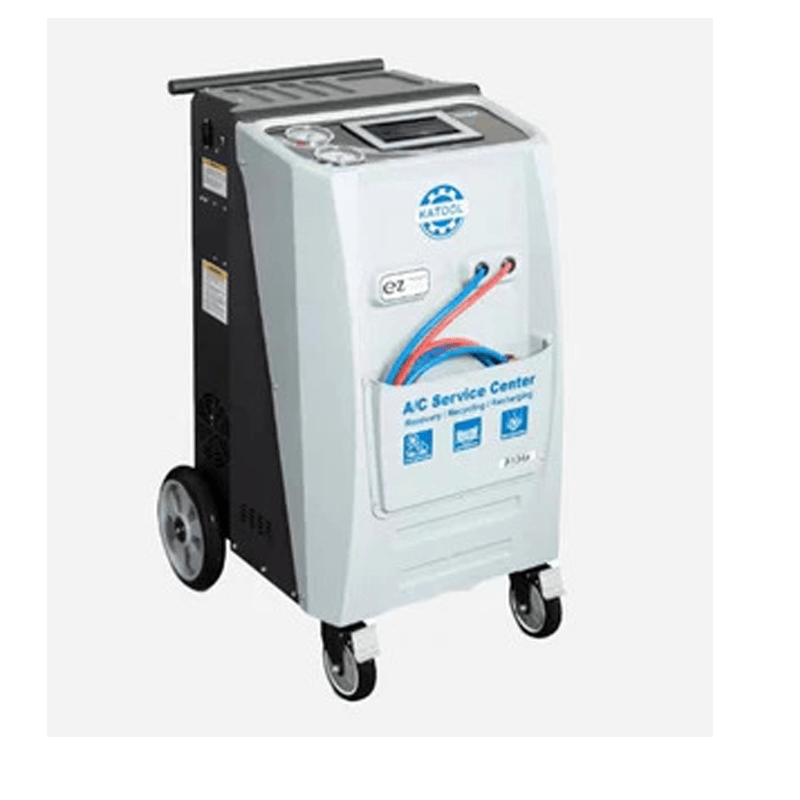

R-1234YF Recovery Machine by Katool
Say goodbye to sluggish recoveries and inaccurate measurements. The Dual AC2100 from Katool is the muscle machine of R-1234YF refrigerant recovery, built for professional HVAC service technicians who demand speed, precision, and safety. This American-made machine boasts a powerful twin-cylinder compressor and a high-performance vacuum pump, working together to remove refrigerant at an impressive rate of 39.7 lbs/hour. That means you’ll get the job done faster, keeping your customers cool and your business moving.
Accuracy is crucial, and the Katool Dual AC2100 delivers. The machine features gas and oil load cell technology, ensuring precise measurements down to a mere 0.04 oz. No more guesswork – you’ll know exactly how much refrigerant you’re recovering and refilling. Meanwhile, the intuitive 7-inch touchscreen display makes operation a breeze, while the rugged HDPE case ensures portability and durability on the job site. This machine is a complete package. It comes equipped with everything you need to get started, including hoses, a filter drier, and an oil separator. Plus, the optional extras like a heating belt and an SD database let you customize your setup for maximum efficiency. With its advanced features, user-friendly design, and commitment to safety, it’s the perfect choice for HVAC service professionals who want to stay ahead of the curve.
Dual AC2100 R-1234YF Specifications:
- Applicable Refrigerant Type: R1234YF
- Voltage: 110V AC, 60 Hz
- Recovery Performance (70-75°F): Min. 95% in less than 30 min
- Charge Performance (70-75°F): ±0.5 oz (15 g)
- Operate Temperature Range: 41-122°F (5-50°C)
- Max Pressure: 18 bar
- Filter-Drier Capacity: 175 lbs (80 kg), spin-on type
- Gas Loadcell Accuracy: 0.04 oz/66 lbs (1 g/30 kg)
- Oil Loadcell Accuracy: 0.04 oz/66 lbs (1 g/30 kg)
- Vacuum Transducer Accuracy: 1 mBar/1000 mBar
- Recovering Speed: 39.7 lbs/h (18 kg/h)
- Charge Speed: 2.2 lbs/min (1 kg/min)
- Hose Length: 9.8’ (3 m) SAE J2788
- Compressor: 1/3 hp (246W), thermal protected, oiled, hermetically sealed
- Vacuum Pump: 3.6 CFM (120 L/min), dual stage
- Display: 7” touch HQ
- Tank: 0.5 cubic feet (14.3 L)
- Oil Bottle: 15 cubic inch (250 mL)
- Printer: YES
- Heating Belt: optional
- SD Database: YES
- Vacuum Test: YES
- Fan & Condenser: YES
- Packing Size: 22” x 28” x 41” (550 x 700 x 1050 mm)
- Gross Weight: 240 lb (110 kg)
R-1234YF Dual AC2100 Special Features:
- Twin cylinder 1/2 hp oil-less compressor and gravity drain condenser
- No need to regulate the inlet; compressor is capable of handling both liquid and vapor refrigerants
- Unique “Y” hose assembly that recovers from the low-side and high-side of the vehicle simultaneously
- Hose kit includes all necessary hoses and couplers for servicing R-134a and R-1234YF MVAC systems
- Safe venting of case interior prior to start up
- Low pressure bypass for recovery of leak-free systems
- Low pressure switch stops recovery above ambient pressure for leaking systems to prevent pulling air into recovery cylinders
- 80% tank full shut-off safety harness prevents over filling of recovery tank
- Oil separator and oil measure bottle for system oil removal measurement
- For protection, high pressure shut-off switch turns the unit off automatically if the pressure rises above 350 psi
- Inlet filter screen stops debris from getting inside unit
- Maximum air flow and cool running even in high ambient temperatures
- High efficiency fan keeps air moving across condenser
- High pressure switch with automatic reset, tank overfill sensor, and external circuit breaker
- High strength HDPE case for lightweight, portable and rugged use
- LED indicators simplify recovery information
- Certified to meet SAE J2851, conforms to UL 1963
- Designed and manufactured in the U.S.A.
