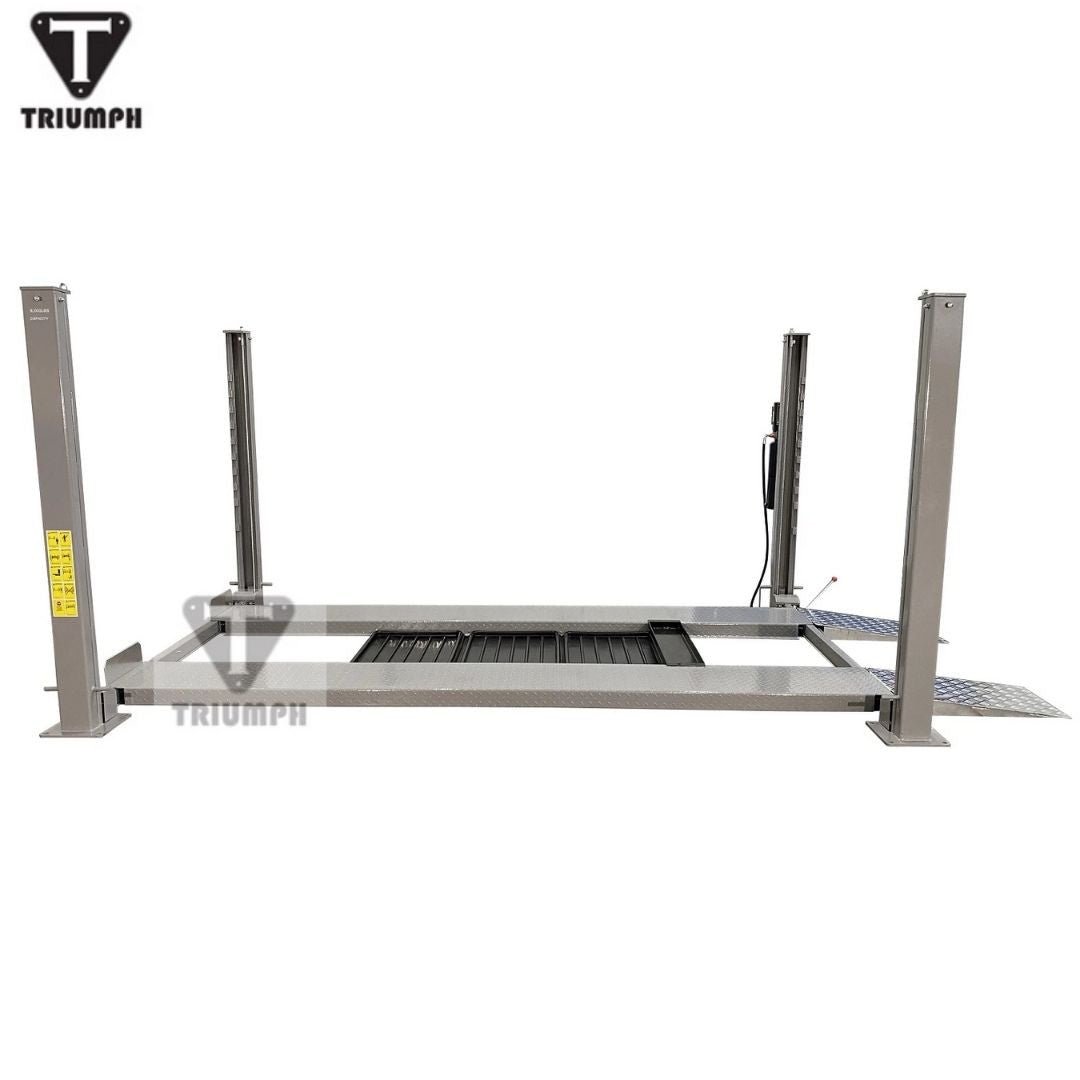

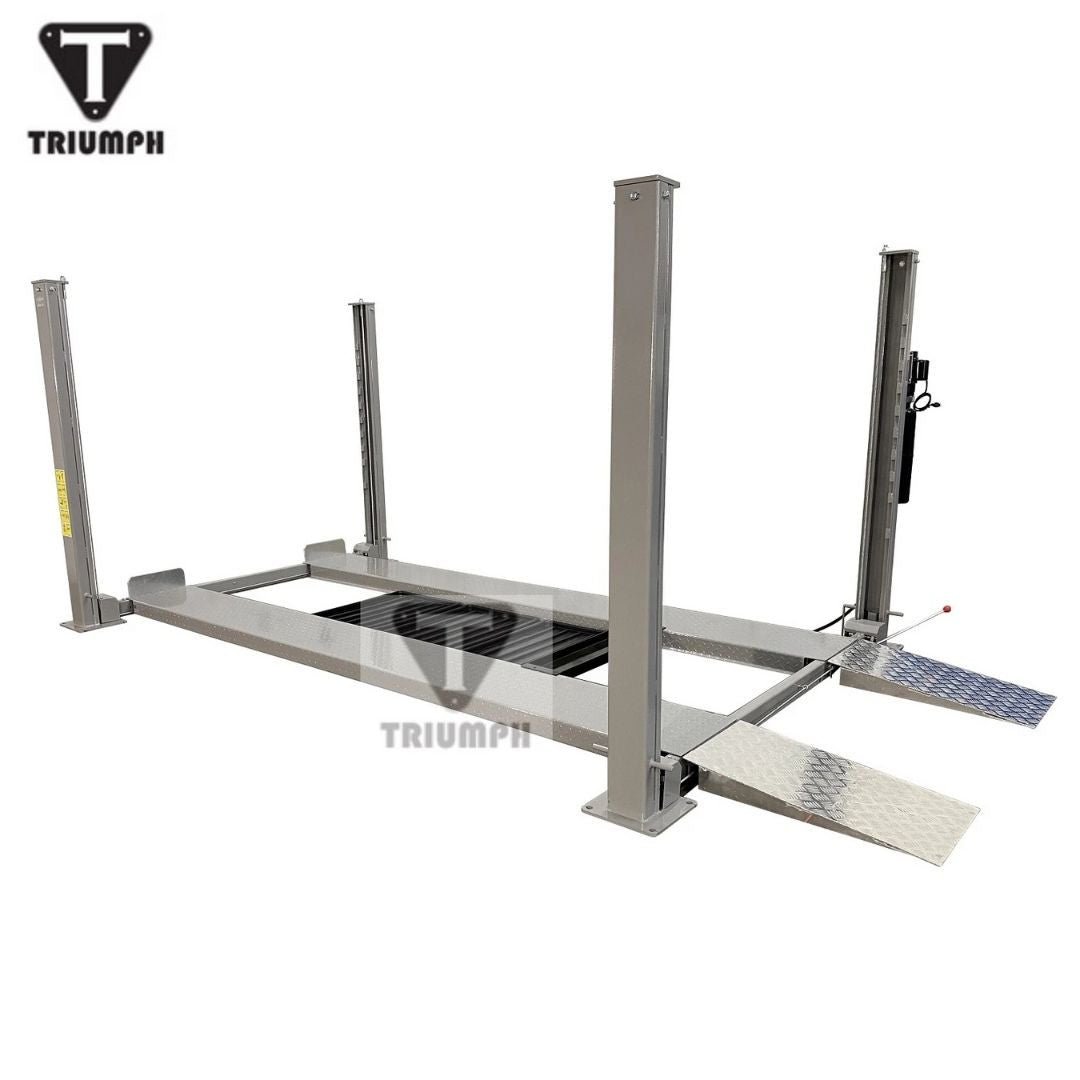

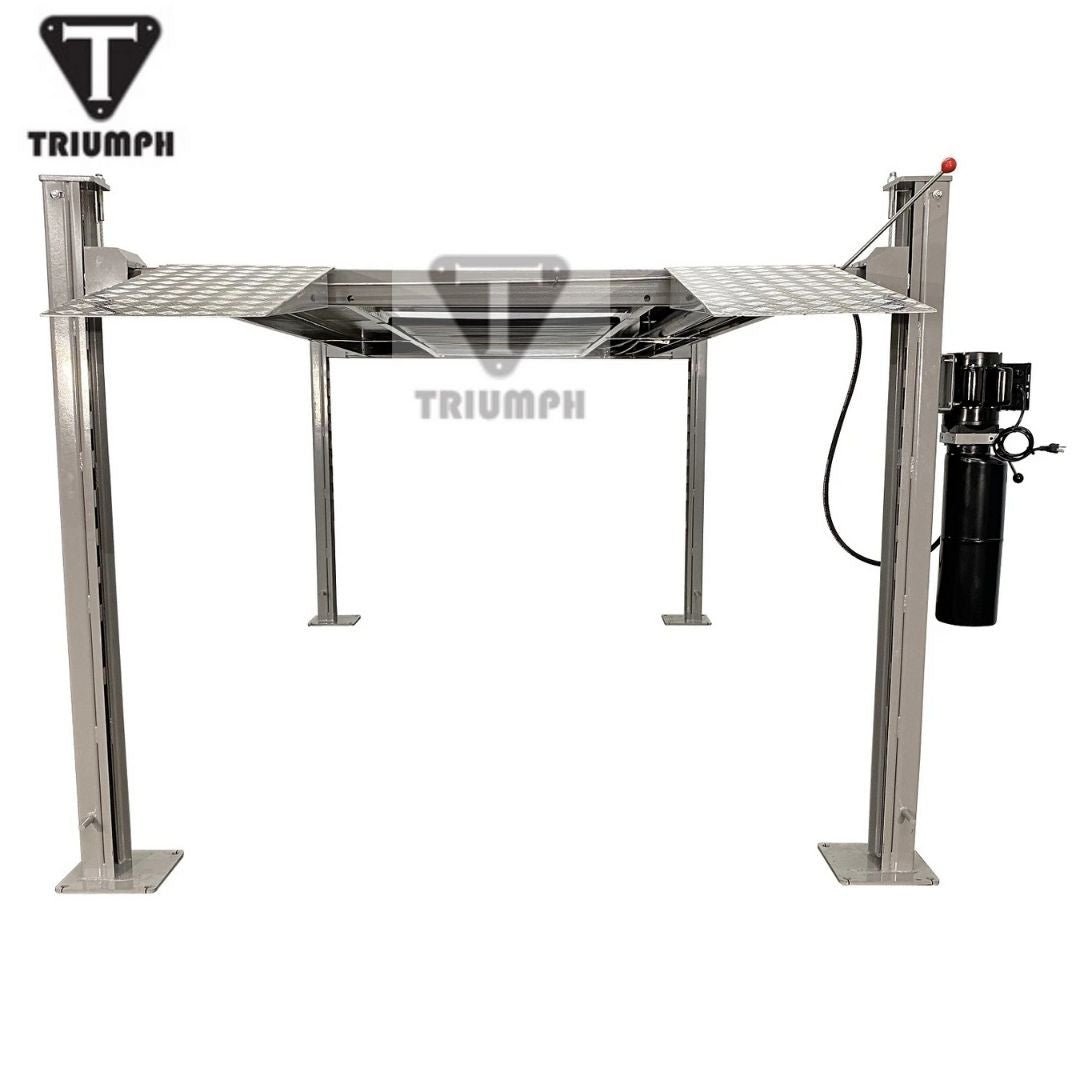

NSS-8SQ Vehicle Storage Lift by Triumph

There are parking lifts. Then there’s the Triumph NSS-8SQ Classic Lift. This 8,000 lb capacity behemoth is a garage game-changer that would make even Ferdinand Porsche nod in approval. With a runway that’s practically a drag strip at 165″ and a width between posts wider than a Hummer’s grin at 94″, it’s ready to cradle everything from nimble roadsters to burly trucks.

But don’t let its muscle fool you – this four-post marvel moves with the grace of a ballet dancer on a street dance competition. Its portable design and caster kit let you choreograph your garage space like a pit crew chief. Add in the jack tray for precision lifts and three drip trays to keep things cleaner than a Concours d’Elegance show car, and you’ve got more versatility than a Swiss Army knife. With 10 locking positions engaging faster than a drag racer’s reflexes and a lift height that rivals a monster truck’s suspension, the Classic Lift isn’t just raising cars – it’s elevating your entire garage experience to pole position.

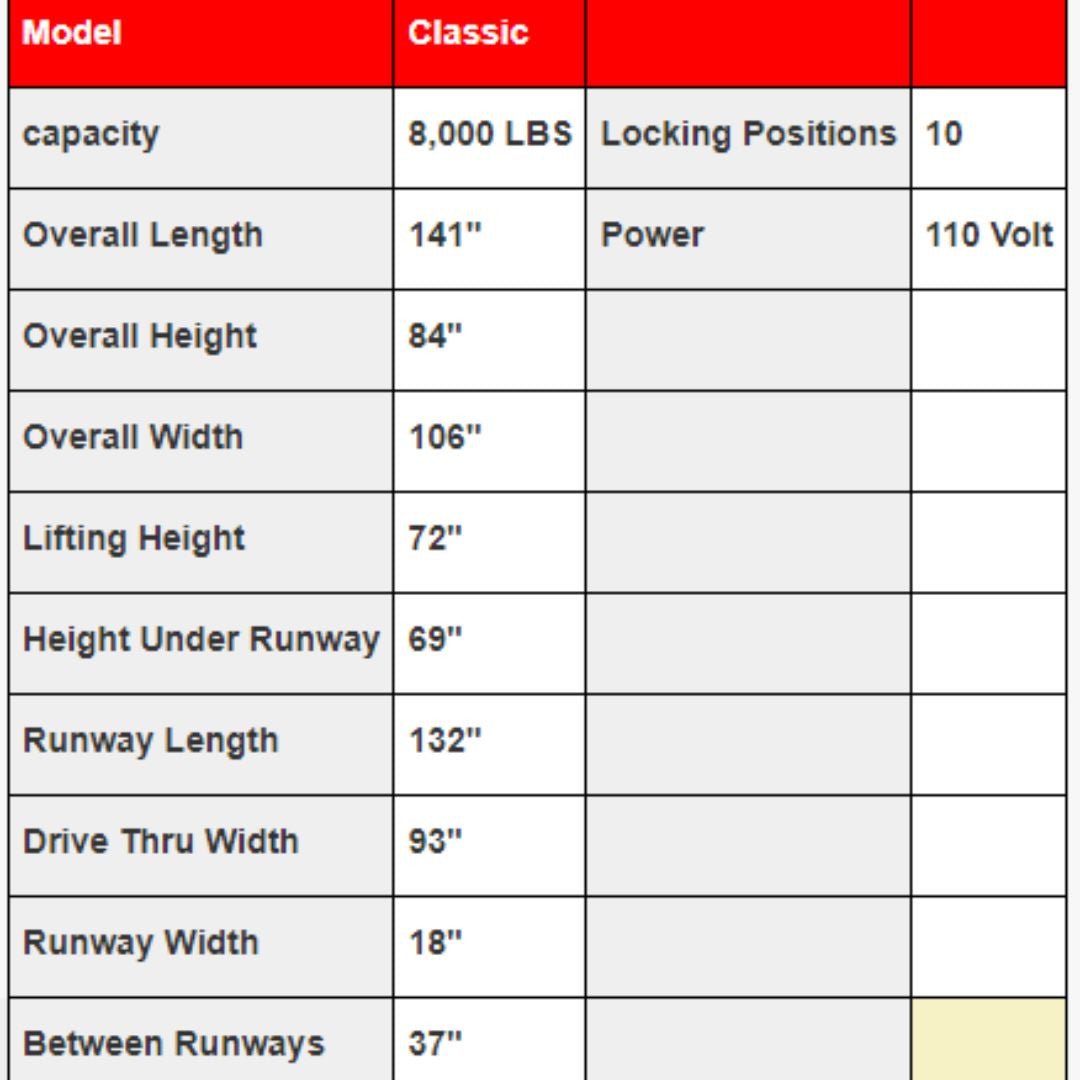

Triumph Classic Lift Specifications:

• Lifting Capacity: 8,000 lbs
• Overall Height: 84″
• Runway Length: 132″ (w/o ramps)
• Overall Length: 141″ (2.5ft shorter than NSS8)
• Overall Width: 106″
• Lift Height: 72″
• Height Under Runway: 69″
• Drive Thru Width: 93″
• Runway Width: 18″
• Between Runway: 37″
• Locking Positions: 10 (Every 4.5″)
• Lowest Lock Position: 26″
• Highest Lock Position: 69.5″
• Single Point Lock Release
• Lift Time: 40 Seconds

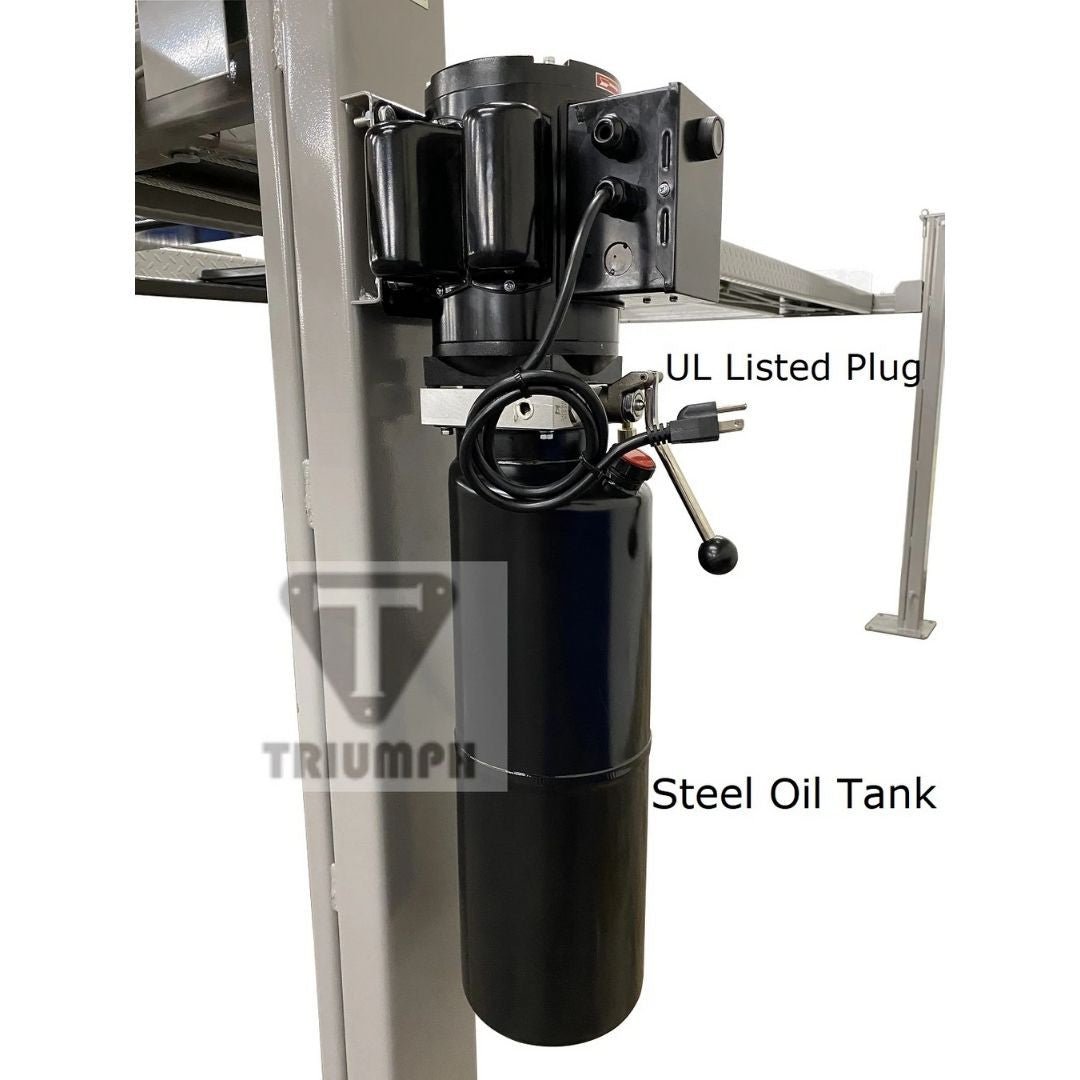

• Motor: 110V / 20 Amp / 1HP
• Shipping Weight: 1,600 lbs
• Pallet Dimension: 136″ x 21″ x 29″

NSS-8XQ 8,000 Vehicle Storage Lift Special Features:

• Often called “The Classic”
• Four-post design for enhanced stability and vehicle storage
• Drive-on ramps for easy vehicle positioning
• Aluminum Ramps
• Automatic safety locks for secure lifting

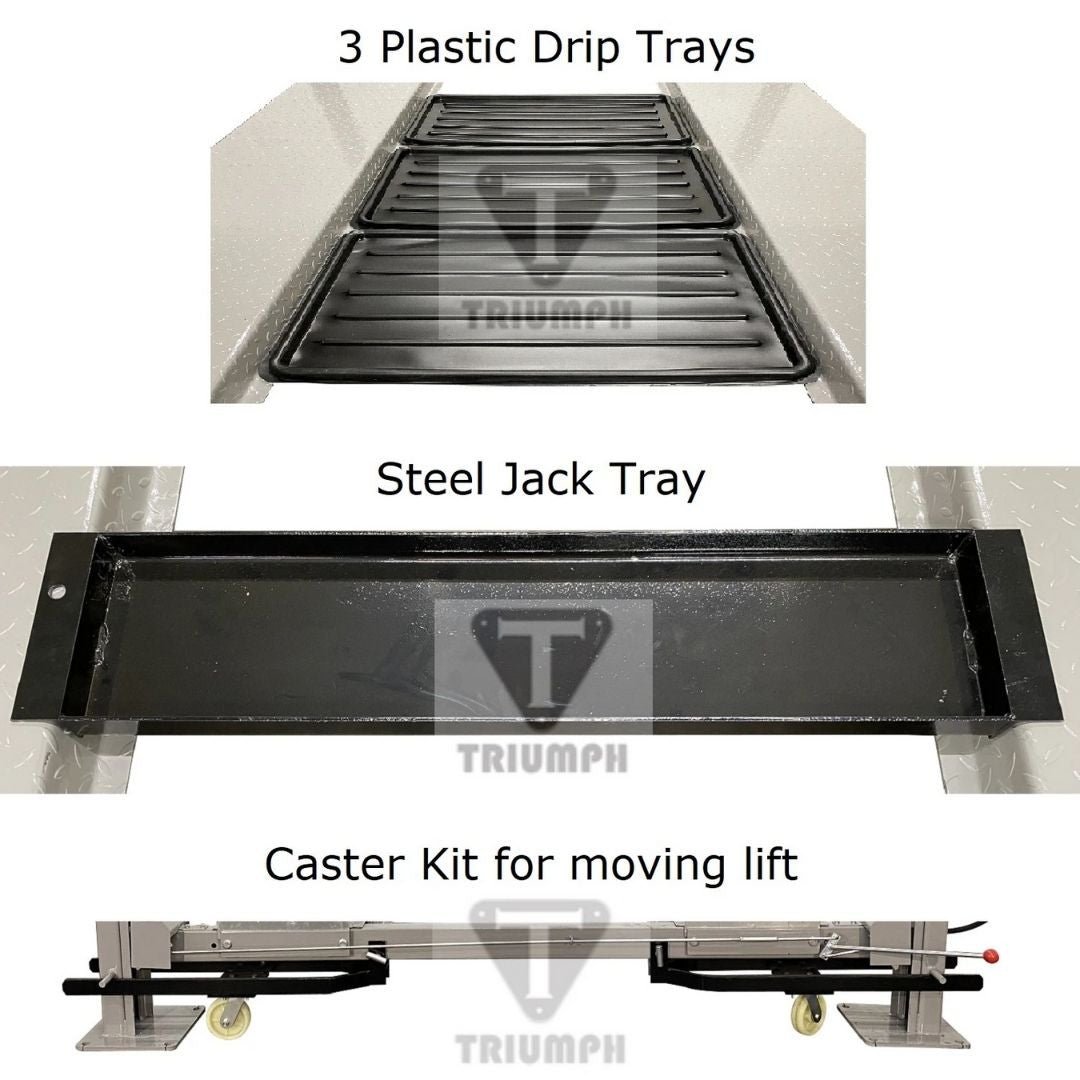

• Includes:

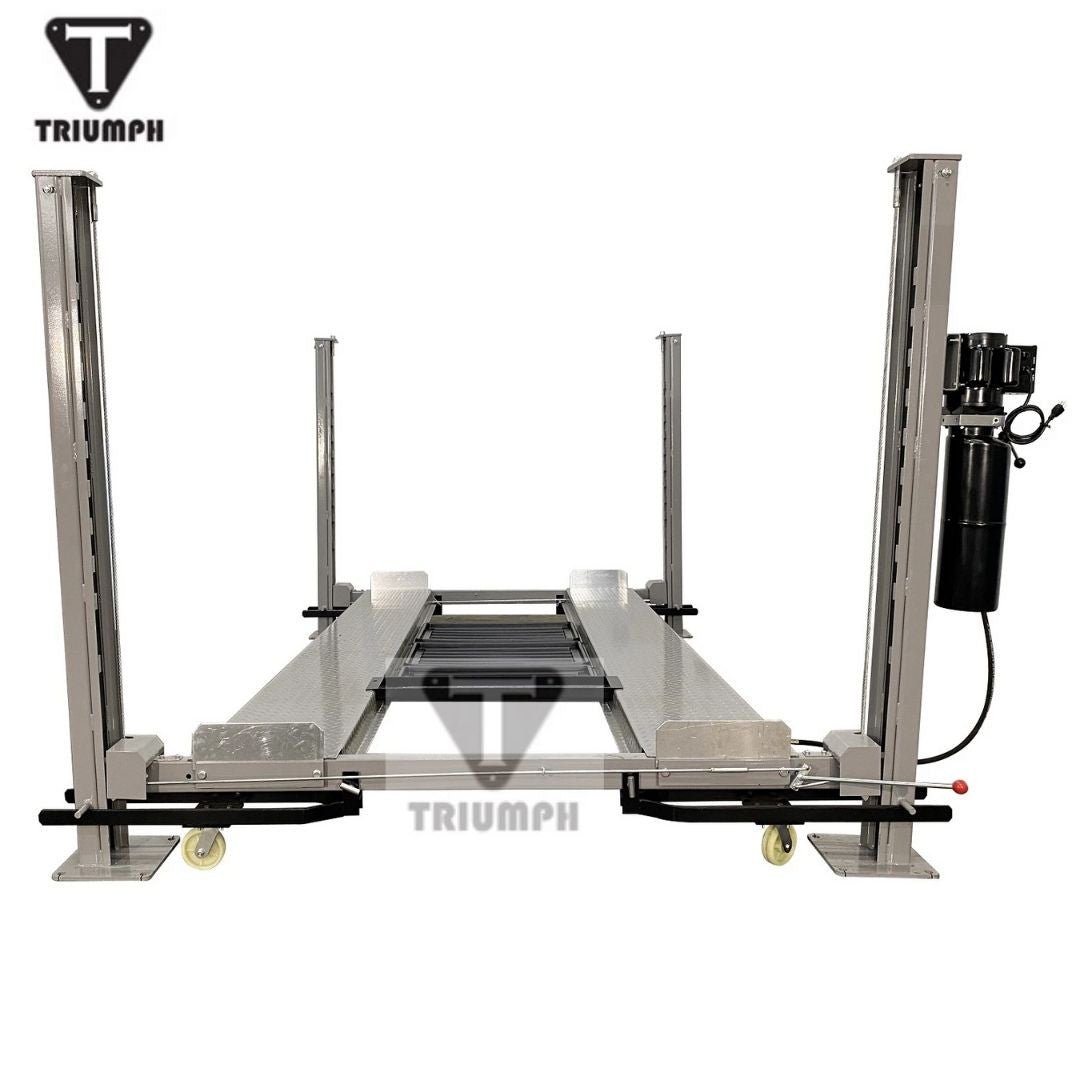

  • Caster kit for mobility and easy placement
  • Drip trays to prevent fluid mess
  • Jack tray for additional lifting flexibility
• Warranty: 1 year parts only
• Certification: CE Certified and built in factories with ISO9001 Quality Certification
• Optional Item (Sold Separate)
  • Triumph NSS-8 Storage Lift Bridge Jack SJ35

NSS-8SQ Manual

  Triumph NSS-8SQ Manual

  Triumph NSS-8SQ Cable Routing

*An additional $200 freight fee is required for locations in Northern CA, SD, ND, MT, & WY. After initial purchase, a separate link will be sent to complete your transaction.
