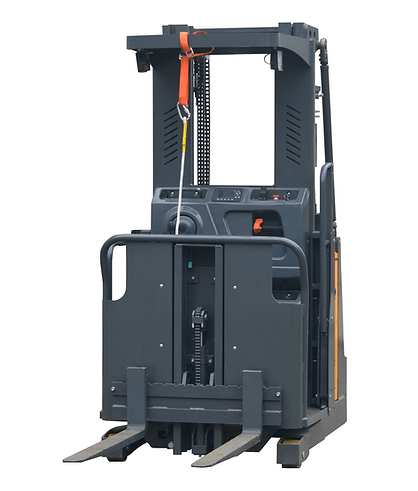

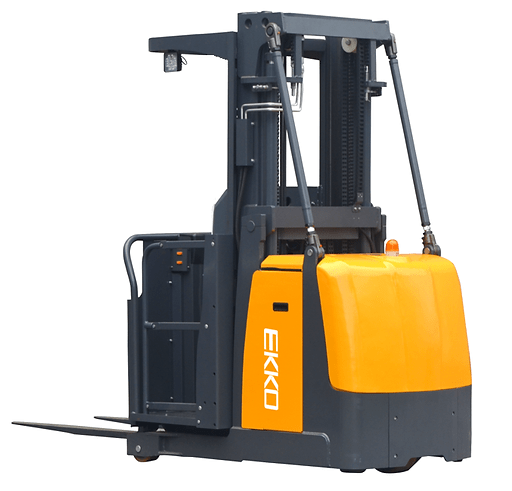

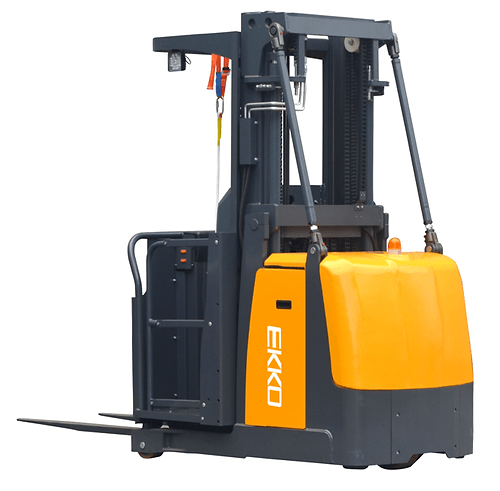

Effortless Order Picking at Mid-Levels: EKKO EOP68 Electric Order Picker
The EKKO EOP68 Electric Order Picker is specifically designed to streamline picking tasks in warehouses, storage facilities, manufacturing floors, and similar environments. Here’s why the EOP68 is a strong choice for efficient order fulfillment:

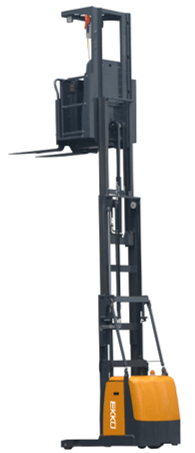

- Reach More Inventory with Ease: The EOP68 boasts a maximum lift height of 14.75ft (177 inches), allowing operators to comfortably pick orders from mid-level shelving and racking systems.
- Enhanced Efficiency: The adjustable forks and an auxiliary fork facilitate picking multiple items at once, potentially speeding up the order fulfillment process.
- Triple Mast for Stability: The triple mast design provides increased stability during operation, even at extended heights.
- Precise Maneuvering and Control: The Curtis Instrument controller, Electronic Power Steering (EPS), and German AC drive motor ensure smooth operation and precise handling in aisles and around tight corners.
- Operator Comfort: Ergonomic handle and controls prioritize operator comfort during extended periods of picking.
Additional Features:
- Durable Construction: Built with high-quality steel and robotic welding for a long lifespan.
- Powerful Battery and Charger Included: The 24V/350Ah battery and included charger ensure the EOP68 is always ready to operate.
- Polyurethane Wheels: Provide smooth travel and wear resistance.
- 3-Year Limited Warranty: Delivers peace of mind.
Specification
Model | EOP68 | |
Power unit | Electric | |
Operation | Stand on | |
Rated loading capacity | Q (lbs) | 2200 |
Load centre | c (Inch) | 19.68 |
Between fork backrest & front wheel | x (Inch) | 7.56 |
Wheelbase | y (Inch) | 53.46 |
Serviceweightwithbattery | lbs | 6270 |
Wheels type | PU | |
Driving wheel size | Φ×w(Inch) | Φ9.84×5 |
Bearing wheel size | Φ×w(Inch) | Φ5.9×3.23 |
Wheels, number front/rear (x = driven) | 1，/2 | |
Track width | b11 (Inch) | 37.8 |
Lowered mast height | h1 (Inch) | 93.11 |
Lifting height | h4 (Inch) | 177.16 |
Extended mast height | h4 (Inch) | 266.65 |
Height of overhead guard(cabin) | h6 (Inch) | 89.48 |
height of seat/stand-on platform | h7 (Inch) | 10.67 |
Additional lift height | h9 (Inch) | 30.71 |
total lift height | h10 (Inch) | 208.66 |
Platform lifting height | h12 (Inch) | 187.83 |
Lowered fork height | h13 (Inch) | 1.97 |
Picking height | h15 Inch) | 239.01 |
Overall length | l1 (Inch) | 111.41 |
Body Length | l2 (Inch) | 69.29 |
Overall width | b1/ b2 (Inch) | 39.37/145.28 |
Fork Size | s/e/l (Inch) | 1.37/3.93/42.13 |
Width of fork fixing frame | b3 (Inch) | 35.83 |
outside fork width | b5 (Inch) | 34.33 |
Min. Ground clearance | m2 (Inch) | 1.97 |
Aisle width for pallets 39.37*47.24 crossways | Ast (Inch) | 122.24 |
Aisle width for pallets 31.5*47.24 lengthways | Ast (Inch) | 126.77 |
Turing Radius | Wa (Inch) | 61.81 |
Travel speed,laden/unladen | (km/h) | 8 |
Lifting speed, with/without load(cabin) | (mm/s) | 140/150 |
Lifting speed, with/without load(Fork) | (mm/s) | 130/140 |
Lowering speed, with/without load(cabin) | (mm/s) | 240/250 |
Lowering speed, with/without load(Fork) | (mm/s) | 130/95 |
Climbing ability, with/without load | (%) | 3/6 |
Brake Type | Electromagnetic brake | |
Drive Motor | (kW) | 3 |
Lift Motor | (kW) | 6 |
Battey, DIN 43531/35/36 A,B,C,no | no | |
Battery voltage/rate capacity | (V/Ah) | 24/350 |
Battery Weight（±5%） | (LBS) | 600 |
Type of drive control | AC | |
Noise level | (dB(A)) | ‰¤75 |
